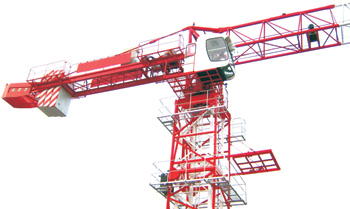

Main Specifications of Tower Crane
Hoisting mechanism | |
Motor power | 30/30KW |
Motor rotate speed | 1325/725 (r/min) |
Wire rope: Diameter | 14m |
Wire rope :Max average linear velocity | 160m/min |
Braking moment | 630N.m |
Reducer gear ratio | 17.8 |
Rope capacity | 400m |
Max tractive force | 20KN |
tap position | 5 |
Trolleying mechanism | |
Motor power | 5.5KW |
Motor Rotate speed | 1440(r/min) |
Wire rope: Diameter | 9.3m |
Wire rope :Max a linear velocity | 60m/min |
Reducer gear ratio | 33 |
Braking moment | 80N.m |
Working radius | 65m |
tap position | 3 |
Slewing mechanism | |
Motor power | 4 x 2 Kw |
Motor Rotate speed | 1440rpm |
Reducer ear ratio | 195 |
Reducer Output twisting moment | 10000N.m |
Output gear Module | 12mm |
Output gear Number of teeth | 16 |
tap position | m |
slewing ring | 1600.50 |
climbing mechanism | |
Motor power | 5.5Kw |
Motor Rotate speed | 1440rpm |
Hydraulic pump flow | 14.4L/min |
Hydraulic pump working pressure | 25Mpa |
Climbing hydraulic Diameter of cylinder/piston | 160/110 |
Climbing hydraulic Max pushing force | 45t |
Climbing hydraulic Speed of climbing | 0.7 m/min |
