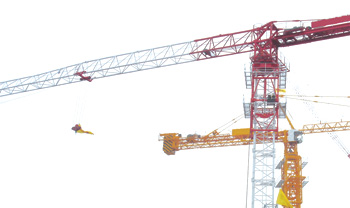

QP5013 Tower Crane

QP5013 Tower Crane
Original Image
Products Visitors:1829
  • Product Name:QP5013 Tower Crane
  • Model:QP5013


Main Specifications of Tower Crane

Hoisting mechanism
Motor power 24/24/5.4KW
Motor rotate speed 1440/720/180(r/min)
Wire rope: Diameter 12.5m
Wire rope :Max average linear velocity 160m/min
Braking moment 600N.m
Reducer gear ratio 1:15.69
Rope capacity 340m
Max tractive force 15KN
tap position 3
Trolleying mechanism
Motor power 3.3/2.2KW
Motor Rotate speed 1440/720(r/min)
Wire rope: Diameter 8.5m
Wire rope :Max a linear velocity 40m/min
Reducer gear ratio 1:49
Braking moment 40N.m
Working radius 58m
tap position 2
Slewing mechanism
Motor power 4 x 2Kw
Motor Rotate speed 1440(r/min)
Reducer ear ratio 1:57
Reducer Output twisting moment 8000N.m
Output gear Module 10mm
Output gear Number of teeth 16
tap position 4
slewing ring 1250.4
climbing mechanism
Motor power 5.5Kw
Motor Rotate speed 1440r/min
Hydraulic pump flow 14.4L/min
Hydraulic pump working pressure 25Mpa
Climbing hydraulic Diameter of cylinder/piston 160/110
Climbing hydraulic Max pushing force 45t
Climbing hydraulic Speed of climbing (m/min) 0.7m/min
