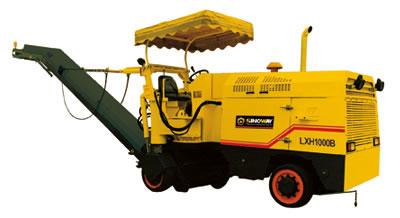

Features of Asphalt Cold Milling Machine
1. High efficient for road mechanical maintenance;
2. State-of-the-art structure, reliable functions;
3. Easy operation, convenient maintenance;
4. Key parts: imported directly or made with imported technologies;
5. Its reclaim system can convey used material milled to the trucks.
Applications of Asphalt Cold Milling Machine
Asphalt Cold Milling Machine, a kind of road construction machinery, is a desired engineering vehicle. It is mainly used for high grade roads, city roads, airports and squares problem like road protuberance, wave and rut tracks, and roughcasting on low frictional road.
Main Specifications of Asphalt Cold Milling Machine
| Model: LXH1000D | |
| Type: wheel | |
| Parameter: | |
| Milling width | 1000 mm |
| Milling depth | 0—150 mm |
| Milling speed | 0—14m/min |
| Travelling speed | 0—12 km/h |
| Conveyer's belt width | 450mm |
| Max. discharging height | 3500 mm |
| Min. turning diameter | 13.5m |
| Min. distance from ground | 80 mm |
| Theoretical climbing capacity | ≥15% |
| Overall Size: | |
| Length | 10640mm |
| Width | 2430mm |
| Height | 3100mm |
| Weight | 15500kg |
| Engine: | |
| Model | D6114ZG1B |
| Type | 6 cylinders water-cooled pressure engine |
| Power | 140kW |
| Rotating speed | 2300r/min |
| Fuel consumption | 228g/kW.h |
| Diesel capacity | 240L |
| Water tank capacity | 350L |
