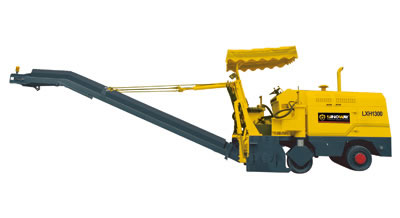

Features of Asphalt Cold Milling Machine
1.High efficient engineering equipment for mechanical maintenance of road;
2.Its reclaim system can convey used material to the trucks;
3.State-of-the-art structure, reliable functions, easy operation;
4.Key parts: imported directly or made by imported technologies;
5.Fill the blank of over 1m millers in China.
Applications of Asphalt Cold Milling Machine
This road milling machine is mainly suitable for asphalt road, airport, square etc. It also can be used on low frictional road.
Main Specifications
| Model: LXH1300D | |
| Type: wheel | |
| Parameter: | |
| Milling width | 1300 mm |
| Milling depth | 0--120 mm |
| Outsize: | |
| Length | 10640mm |
| Width | 2430mm |
| Height | 3100mm |
| Weight | 15800kg |
| Capability: | |
| Milling speed | 0—14m/min |
| Running speed | 0--12 km/h |
| Conveyer's belt width | 450mm |
| Max. discharging height | ≥3500 mm |
| Min. turning diameter | 13.5 m( with reclaim device 19m) |
| Min. distance from ground | ≥80 mm |
| Academic climbing capacity | ≥15% |
| Engine: | |
| Model | D6114ZG1B |
| Type | 6 cylinders water-cooled forced induction engine |
| Power | 140kW |
| Rotated speed | 2300r/min |
| Fuel consumption | 228g/kw.h |
