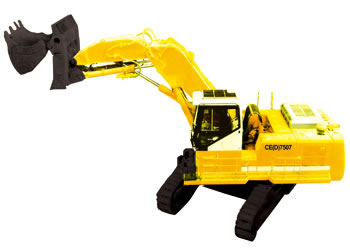

CED7507 Hydraulic Excavator

Products Visitors:2691


Description of Hydraulic Excavator
1. Combines electric-hydraulic technology;
2. Lower operation cost (only 50-70% of that for excavator powered by diesel engine);
3. Has a streamlined appearance;
4. Delivers high performance, powerful digging force, improved productivity and loading efficiency;
5. Provides more availability and longer operation life;

Main Features of Hydraulic Excavator
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump, raising the working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Better reliability with hose and seal
7. Case shape structure, attachment designed by CAD
8. Automatically injecting the fuel (Optional)
Applications of Hydraulic Excavator
1. As a kind of engineering equipment, the powerful earth-moving excavator is used increasingly in the task of digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.;
2. It is also suitable for the exploiting and loading in all classes of mine, water and electricity construction on the site with convenience electric power.

Main Specification

Machine weight
With Face shovel 75 t
With Backhoe 73t
Bucket capacity
Face shovel (standard) 4.5 m3
Face shovel (range) 4.0~ 5.5 m3
Backhoe(standard) 3.5m3
Standard(range)  2.3~5.0
Electromotor
Model YJK3555-4
Power /Speed 280/1485
Voltage 6000V
Hydraulic system
Max. pressure of main oil circuit 32 MPa
Max. flow of main oil circuit 2×415 L/min
Operating style Pilot control
Hydraulic oil tank capacity 780 L
Performance
Swing speed 6.0 r/min
Travel speed 3.1 km/h
Max. pulling force 457 kN
Gradeability 70 %
Ground pressure 0.098 MPa
Circulating time of operation 20 s
Working date
Boom length(Face shovel) 4450mm
Boom length(Backhoe) 7000mm
Stick length(Face shovel) 2900mm
Stick length(Backhoe) 3400mm
Max. digging radius(Face shovel) 9280mm
Max. digging radius(Backhoe) 12290mm
Max. digging depth(Face shovel) 2680mm
Max. digging depth(Backhoe) 7741mm
Max. digging height(Face shovel) 9745mm
Max. digging height(Backhoe) 10286mm
Max. unloading height(Face shovel) 7680mm
Max. unloading height(Backhoe) 7340mm
Max. digging force of stick(Face shovel) 334mm
Max. digging force of stick(Backhoe) 233mm
Max. breakout force of bucket(Face shovel) 357mm
Max. breakout force of bucket(Backhoe) 285mm
