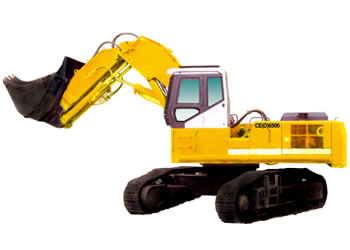

CED6506 Hydraulic Excavator

Products Visitors:2328


Description of Hydraulic Excavator
1. Quality components from well-known manufacturers;
2. A streamlined appearance;
3. Perfect performance, powerful digging force;
4. High productivity and loading efficiency, low operation cost;
5. More availability, long service life;

Main Features of Hydraulic Excavator
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump, improving the working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Better reliability with hose and seal
7. Case shape structure, attachment designed by CAD
8. High strength and high steel platform and the undercharge
9. Automatically injecting the fuel (Optional)
Applications of Hydraulic Excavator
The powerful earth-moving excavator, a kind of engineering equipment, is especially suitable for digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.

Main Specification

Machine weight
With Face shovel 65 t
With Backhoe 63t
Bucket capacity
Face shovel (standard) 4.0 m3
Face shovel (range) 3.5~ 5.0 m3
Backhoe(standard) 3.0m3
Standard(range)  2.7~4.0
Electromotor
Model Y315L2-4
Power /Speed 200/1480
Voltage 380V
Hydraulic system
Max. pressure of main oil circuit 30 MPa
Max. flow of main oil circuit 2×400 L/min
Operating style Pilot control
Hydraulic oil tank capacity 650 L
Performance
Swing speed 6.0 r/min
Travel speed 3.0 km/h
Max. pulling force 460 kN
Gradeability 70 %
Ground pressure 0.096 MPa
Circulating time of operation 24 s
Working date
Boom length(Face shovel) 4200mm
Boom length(Backhoe) 7100mm
Stick length(Face shovel) 2800mm
Stick length(Backhoe) 3000mm
Max. digging radius(Face shovel) 9061mm
Max. digging radius(Backhoe) 11950mm
Max. digging depth(Face shovel) 3200mm
Max. digging depth(Backhoe) 7704mm
Max. digging height(Face shovel) 9521mm
Max. digging height(Backhoe) 10542mm
Max. unloading height(Face shovel) 7911mm
Max. unloading height(Backhoe) 7158mm
Max. digging force of stick(Face shovel) 174mm
Max. digging force of stick(Backhoe) 174mm
Max. breakout force of bucket(Face shovel) 214mm
Max. breakout force of bucket(Backhoe) 214mm
