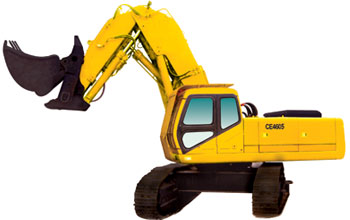

CED4605 Hydraulic Excavator

CED4605 Hydraulic Excavator
Original Image
Products Visitors:1521


Description of Hydraulic Excavator
1. Based on state-of-the-art design and cutting-edge technology;
2. Has a streamlined appearance;
3. Provides perfect performance, powerful digging force, high productivity and loading efficiency at low operation cost;
4. More availability and extended service life are available for this kind of engineering equipment;
5. Combined electric-hydraulic technology successfully;

Main Features of Hydraulic Excavator
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump, enhancing the working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Better reliability with hose and seal
7. Case shape structure, attachment designed by CAD
8. Automatically injecting the fuel(Optional)
Applications of Hydraulic Excavator
1. The earth-moving excavator is suitable for the task of digging of soil grade Ⅰ ~ Ⅳ, and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.;
2. It is also used for the exploiting and loading in all classes of mine, water and electricity construction on the site with convenience electric power.

Main Specification

Machine weight
With Face shovel 46 t
With Backhoe 45t
Bucket capacity
Face shovel (standard) 2.5 m3
Face shovel (range) 2.0~ 2.5 m3
Backhoe(standard) 2.0 m3
Standard(range)  1.0~2.5
Electromotor
Model Y315M1-4
Power /Speed 132Kw/1480rpm
Voltage 380V
Hydraulic system
Max. pressure of main oil circuit 27.40 MPa
Max. flow of main oil circuit 2×250 L/min
Operating style Pilot control
Hydraulic oil tank capacity 650 L
Performance
Swing speed 7.1 r/min
Travel speed 2.34 km/h
Max. pulling force 295 kN
Gradeability 70 %
Ground pressure 0.083 MPa
Circulating time of operation 16~ 19s
Working date
Boom length(Face shovel) 3950mm
Boom length(Backhoe) 6400mm
Stick length(Face shovel) 2600mm
Stick length(Backhoe) 2800mm
Max. digging radius(Face shovel) 8260mm
Max. digging radius(Backhoe) 11315mm
Max. digging depth(Face shovel) 2440mm
Max. digging depth(Backhoe) 7098mm
Max. digging height(Face shovel) 9240mm
Max. digging height(Backhoe) 9204mm
Max. unloading height(Face shovel) 6630mm
Max. unloading height(Backhoe) 5944mm
Max. digging force of stick(Face shovel) 243mm
Max. digging force of stick(Backhoe) 175mm
Max. breakout force of bucket(Face shovel) 230mm
Max. breakout force of bucket(Backhoe) 186mm
