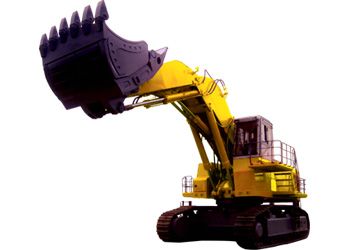

Description of Hydraulic Excavator
1. Adopts electric-hydraulic technology;
2. Lower operation cost: only 50-70% of that for excavator powered by diesel engine.
3. A streamlined appearance;
4. Perfect performance, powerful digging force,
5. High productivity and loading efficiency;
6. More availability and an extended operation life are available for this kind of engineering equipment;
Main Features of Hydraulic Excavator
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump, raising the working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Improved reliability with hose and seal
7. Case shape structure, attachment designed by CAD
8. Automatically injecting the fuel (Optional)
Applications of Hydraulic Excavator
1. The earth-moving excavator is employed to complete the task of digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.;
2. It is also suitable for different mines such as non-ferrous metal mine, building material mine, and other stripping &loading operation in water power plant.

Main Specification

Machine weight
With Face shovel	125 t
With Backhoe	116t
Bucket capacity
Face shovel (standard)	6.5 m3
Face shovel (range)	6.0~ 8.0 m3
Backhoe(standard)	5.0m3
Standard(range)	3.5~7.0 m3
Electromotor
Model	YJK4004-4
Power /Speed	450/1485
Voltage	600V
Hydraulic system
Max. pressure of main oil circuit	32 MPa
Max. flow of main oil circuit	2×522 L/min
Operating style	Pilot control
Hydraulic oil tank capacity	1300 L
Performance
Swing speed	5.8 r/min
Travel speed	2.4 km/h
Max. pulling force	713 kN
Gradeability	70 %
Ground pressure	0.127 MPa
Circulating time of operation	22 s
Working date
Boom length(Face shovel)	5450mm
Boom length(Backhoe)	7800mm
Stick length(Face shovel)	3700mm
Stick length(Backhoe)	3400mm
Max. digging radius(Face shovel)	11332mm
Max. digging radius(Backhoe)	13405mm
Max. digging depth(Face shovel)	3330mm
Max. digging depth(Backhoe)	7315mm
Max. digging height(Face shovel)	11870mm
Max. digging height(Backhoe)	11529mm
Max. unloading height(Face shovel)	9400mm
Max. unloading height(Backhoe)	8958mm
Max. digging force of stick(Face shovel)	505mm
Max. digging force of stick(Backhoe)	416mm
Max. breakout force of bucket(Face shovel)	470mm
Max. breakout force of bucket(Backhoe)	550mm
