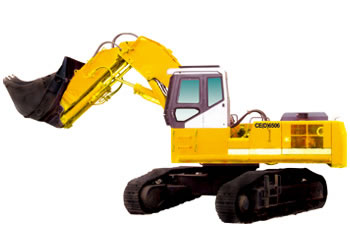

CE6506 Hydraulic Excavator

Products Visitors:1362


Description of Hydraulic Excavator
1. Components: adopt international renowned brands;
2. Has a streamlined appearance;
3. Delivers marked performance, powerful digging force, high productivity and loading efficiency at low operation cost;
4. More availability and long operation life are available for this kind of engineering equipment;

Main Features of Hydraulic Excavator
1. Turbo-charged after-cooled Cummins diesel engine: satisfy the emission of Europe Standard Grade.Ⅲ
2. Control with constant power
3. Starting with zero displacement
4. Technique with pressure cut to protect hydraulic system and reduce the system heat
5. Secondary overloading for swing and normal closed brake
6. Integrated oil & water cooler
7. Two shift travel speed
8. Travel with multiplex action in line
9. Attachment designed by CAD
10. The operator's cab has wide vision field and the streamlined appearance
11. The technique with disassembled undercarriage
Applications of Hydraulic Excavator
The earth-moving excavator is widely used for digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc. The mining excavator is used primarily for different mines such as strip mine, phosphate ore, etc.

Main Specification

Machine weight
With Face shovel 65 t
With Backhoe 63t
Bucket capacity
Face shovel (standard) 4.0 m3
Face shovel (range) 3.5~ 5.0 m3
Backhoe(standard) 3.0m3
Standard(range)  2.7~4.0
Diesel engine
Model Cummins M11-C330
Power /Speed 246/2100
Fuel tank Capacity 726 L
Hydraulic system
Max. pressure of main oil circuit 30 MPa
Max. flow of main oil circuit 2×400 L/min
Operating style Pilot control
Hydraulic oil tank capacity 650 L
Performance
Swing speed 6.0 r/min
Travel speed 3.0 km/h
Max. pulling force 460 kN
Gradeability 70 %
Ground pressure 0.096 MPa
Circulating time of operation 24 s
Working date
Boom length(Face shovel) 4200mm
Boom length(Backhoe) 7100mm
Stick length(Face shovel) 2800mm
Stick length(Backhoe) 3000mm
Max. digging radius(Face shovel) 9061mm
Max. digging radius(Backhoe) 11950mm
Max. digging depth(Face shovel) 3200mm
Max. digging depth(Backhoe) 7704mm
Max. digging height(Face shovel) 9521mm
Max. digging height(Backhoe) 10542mm
Max. unloading height(Face shovel) 7911mm
Max. unloading height(Backhoe) 7158mm
Max. digging force of stick(Face shovel) 174mm
Max. digging force of stick(Backhoe) 174mm
Max. breakout force of bucket(Face shovel) 214mm
Max. breakout force of bucket(Backhoe) 214mm
