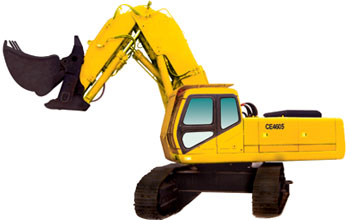

CE4605 Hydraulic Excavator

Products Visitors:1796


Description of Hydraulic Excavator
1. Has a streamlined appearance;
2. Offers outstanding performance, strong digging force and efficient productivity.
3. Provides more availability and longer operation life;

Main Features of Hydraulic Excavator:
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump, raising the working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Hose and seal for better reliability
7. Case shape structure, attachment designed by CAD
8. Automatically injecting the fuel (Optional)
Applications of Hydraulic Excavator:
This kind of engineering equipment (engineering machinery) is applicable to the task of digging of soil gradeⅠ~Ⅲ, and loading of exploded rocks, such as road construction, municipal project, water and electricity construction, exploiting and loading in all classes of mine, etc.

Main Specification

Machine weight
With Face shovel 46 t
With Backhoe 45t
Bucket capacity
Face shovel (standard) 2.5 m3
Face shovel (range) 2.0~ 2.5 m3
Backhoe(standard) 2.0 m3
Standard(range)  1.0~2.5
Diesel engine
Model F8L413F(Deutz technology)
Power /Speed 140/2000
Fuel tank Capacity 420 L
Hydraulic system
Max. pressure of main oil circuit 27.40 MPa
Max. flow of main oil circuit 2×250 L/min
Operating style Pilot control
Hydraulic oil tank capacity 650 L
Performance
Swing speed 7.1 r/min
Travel speed 2.46 km/h
Max. pulling force 295 kN
Gradeability 70 %
Ground pressure 0.083 MPa
Circulating time of operation 16~ 19s
Working date
Boom length(Face shovel) 3800mm
Boom length(Backhoe) 6400mm
Stick length(Face shovel) 2980mm
Stick length(Backhoe) 28000mm
Max. digging radius(Face shovel) 8260mm
Max. digging radius(Backhoe) 11315mm
Max. digging depth(Face shovel) 2440mm
Max. digging depth(Backhoe) 7098mm
Max. digging height(Face shovel) 9240mm
Max. digging height(Backhoe) 9204mm
Max. unloading height(Face shovel) 6630mm
Max. unloading height(Backhoe) 75944mm
Max. digging force of stick(Face shovel) 243mm
Max. digging force of stick(Backhoe) 164mm
Max. breakout force of bucket(Face shovel) 230mm
Max. breakout force of bucket(Backhoe) 174mm
