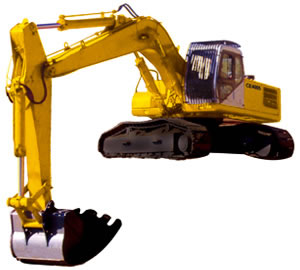

Description of Hydraulic Excavator
1. Equipped with domestic and military-industry technology components in favor of high cost performance and streamlined appearance;
2. With the high performance, strong digging force and efficient productivity.
Main Features of Hydraulic Excavator
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump for higher working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Better reliability with hose and seal
7. Case shape structure, attachment designed by CAD
8. Automatically injecting the fuel (Optional)
Applications of Hydraulic Excavator
The powerful earth moving excavator, a kind of engineering equipment (engineering machinery), is suitable for the task of digging of soil gradeⅠ~Ⅲ, and loading of exploded rocks, such as road construction, municipal project, water and electricity construction, exploiting and loading in all classes of mine, etc.
Main Specification
| Machine weight | |
| With Face shovel | 39 t |
| With Backhoe | 37 |
| Bucket capacity | |
| Face shovel (standard) | 2.0 m3 |
| Face shovel (range) | 1.6~ 2.5 m3 |
| Backhoe(standard) | 1.7 m3 |
| Standard(range) | 1.0~2.0 |
| Diesel engine | |
| Model | F8L413F(Deutz technology) |
| Power /Speed | 140/2000 kW/rpm |
| Fuel tank Capacity | 420 L |
| Hydraulic system | |
| Max. pressure of main oil circuit | 27.4 MPa |
| Max. flow of main oil circuit | 2×250 L/min |
| Operating style | Pilot control |
| Hydraulic oil tank capacity | 600 L |
| Performance | |
| Swing speed | 9.0 r/min |
| Travel speed | 2.3 km/h |
| Max. pulling force | 293 kN |
| Gradeability | 70 % |
| Ground pressure | 0.076 MPa |
| Circulating time of operation | 16~19 s |
| Working date | |
| Boom length(Face shovel) | 3800mm |
| Boom length(Backhoe) | 6200mm |
| Stick length(Face shovel) | 2980mm |
| Stick length(Backhoe) | 3000mm |
| Max. digging radius(Face shovel) | 8200mm |
| Max. digging radius(Backhoe) | 11000mm |
| Max. digging depth(Face shovel) | 2930mm |
| Max. digging depth(Backhoe) | 7300mm |
| Max. digging height(Face shovel) | 8300mm |
| Max. digging height(Backhoe) | 8400mm |
| Max. unloading height(Face shovel) | 5800mm |
| Max. unloading height(Backhoe) | 5800mm |
| Max. digging force of stick(Face shovel) | 194mm |
| Max. digging force of stick(Backhoe) | 136mm |
| Max. breakout force of bucket(Face shovel) | 180mm |
| Max. breakout force of bucket(Backhoe) | 150mm |
