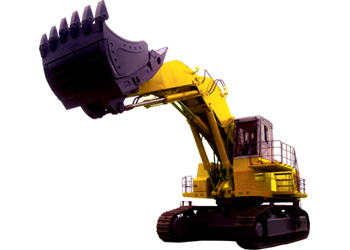

CE12507 Hydraulic Excavator

Products Visitors:2270


Description of Hydraulic Excavator
1. Components: use well-known brands;
2. With a streamlined appearance;
3. Provides exceptional performance, strong digging force, high productivity and loading efficiency at low operation cost;
4. Offers more availability and longer operation life;

Main Features of Hydraulic Excavator
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump, raising the working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Hose and seal for better reliability
7. Case shape structure, attachment designed by CAD
8. Automatically injecting the fuel (Optional)
Applications of Hydraulic Excavator
As a kind of engineering equipment, the powerful earth-moving excavator is suited for the task of digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, handling of slag, etc.

Main Specification

Machine weight
With Face shovel 125 t
With Backhoe 116t
Bucket capacity
Face shovel (standard) 6.5 m3
Face shovel (range) 6.0~ 8.0 m3
Backhoe(standard) 5.0m3
Standard(range)  3.5~7.0 m3
Diesel engine
Model Cummins QSK19-C700
Power /Speed 522/1800
Fuel tank Capacity 1205 L
Hydraulic system
Max. pressure of main oil circuit 32 MPa
Max. flow of main oil circuit 2×522 L/min
Operating style Pilot control
Hydraulic oil tank capacity 1300 L
Performance
Swing speed 5.8 r/min
Travel speed 2.4 km/h
Max. pulling force 713 kN
Gradeability 70 %
Ground pressure 0.127 MPa
Circulating time of operation 22 s
Working date
Boom length(Face shovel) 5450mm
Boom length(Backhoe) 7800mm
Stick length(Face shovel) 3700mm
Stick length(Backhoe) 3400mm
Max. digging radius(Face shovel) 11332mm
Max. digging radius(Backhoe) 13405mm
Max. digging depth(Face shovel) 3330mm
Max. digging depth(Backhoe) 7315mm
Max. digging height(Face shovel) 111870mm
Max. digging height(Backhoe) 112529mm
Max. unloading height(Face shovel) 9400mm
Max. unloading height(Backhoe) 8958mm
Max. digging force of stick(Face shovel) 505mm
Max. digging force of stick(Backhoe) 416mm
Max. breakout force of bucket(Face shovel) 470mm
Max. breakout force of bucket(Backhoe) 550mm
