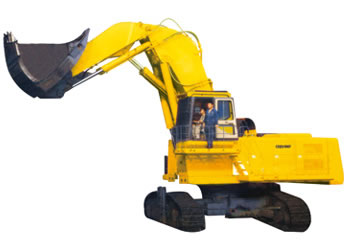

CE10007 Hydraulic Excavator

Products Visitors:1165


Description of Hydraulic Excavator
1. Be designed on the basis of the latest technology;
2. Components: employ the world famous brands;
3. Has a streamlined appearance;
4. Offers high performance, powerful digging force, good productivity and loading efficiency, low operation cost;
5. Provides more availability and long operation life;

Main Features of Hydraulic Excavator
1. Air-cooled diesel engine with Germany Deutz technology
2. Control system by total power for double pumps & circuits
3. The confluence of double pump for higher the working efficiency
4. The frequent-open swing, the walking brake
5. Independent oil-cooling system
6. Better reliability with hose and seal
7. Case shape structure, attachment designed by CAD
8. Automatically injecting the fuel (Optional)
Applications of Hydraulic Excavator
The earth-moving excavator is a kind of engineering equipment that is widely used for digging of soil grade Ⅰ ~ Ⅳ , and loading of exploded rocks, such as road construction, municipal project, water power plant, etc.; the mining excavator is applicable for such mines as non-ferrous metal mine, building material mine, etc.

Main Specification

Machine weight
With Face shovel 102 t
With Backhoe 100t
Bucket capacity
Face shovel (standard) 6.0 m3
Face shovel (range) 5.5~ 7.5 m3
Backhoe(standard) 5.0m3
Standard(range)  3.0~6.5
Diesel engine
Model Cummins QSK19-C675
Power /Speed 503/1800
Fuel tank Capacity 1198 L
Hydraulic system
Max. pressure of main oil circuit 32 MPa
Max. flow of main oil circuit 2×513 L/min
Operating style Pilot control
Hydraulic oil tank capacity 1300 L
Performance
Swing speed 6.1 r/min
Travel speed 2.4 km/h
Max. pulling force 756 kN
Gradeability 70 %
Ground pressure 0.129 MPa
Circulating time of operation 21.5 s
Working date
Boom length(Face shovel) 5250mm
Boom length(Backhoe) 7800mm
Stick length(Face shovel) 3500mm
Stick length(Backhoe) 3400mm
Max. digging radius(Face shovel) 10818mm
Max. digging radius(Backhoe) 13442mm
Max. digging depth(Face shovel) 2464mm
Max. digging depth(Backhoe) 7455mm
Max. digging height(Face shovel) 12884mm
Max. digging height(Backhoe) 12631mm
Max. unloading height(Face shovel) 9341mm
Max. unloading height(Backhoe) 8831mm
Max. digging force of stick(Face shovel) 515mm
Max. digging force of stick(Backhoe) 370mm
Max. breakout force of bucket(Face shovel) 505mm
Max. breakout force of bucket(Backhoe) 380mm
