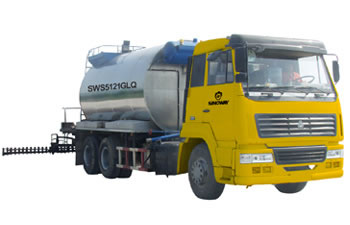

Asphalt Distributor SWS7

Products Visitors:1860
  • Product Name:Asphalt Distributor SWS7
  • Model:SWS5121GLQ


Description of Intelligent Asphalt Distributor
1.It's developed on the basis of our many years' design experience of road construction machinery and engineering equipment.
2.It specializes in spraying emulsified asphalt, diluted asphalt, hot asphalt, hot modified asphalt and various binder;
3.Be ergonomically-designed, easy-operated, economical and practical;
4.HTF pipe: HTF internal heating method ensures smooth liquid running and prevents asphalt from coke burning;
5.Manual spray: the rotation indicator reads asphalt pump rotation speed. The operator can count out the corresponding vehicle speed and asphalt rotation speed to different spray volume according to our specified formula;
6.Automatic spray: the operator only sets spray volume in the console and starts velocity meter, and then the automatic control system could regulate asphalt pump rotation speed according to the vehicle speed;
7.It gets through the strict detection of our operators, as a type of ideal economical road construction machinery (road surfacing machine);

Applications of Intelligent Asphalt Distributor
1.It is widely used to deal with upper and lower seal layer, prime layer, asphalt surfacing, asphalt penetration surface, fog seal layer and so on.
2.It is also able to transport liquid asphalt and other heavy oil.

Main Technical Parameters of Intelligent Asphalt Distributor:
Product Model: SWS5121GLQ
Chassis Model: ZZ1121G4715C1
Spray width: 200—4500mm
Spray volume: 0.5—2.0 kg/m2
Asphalt tank volume: 6500L
Asphalt heater: Imported diesel oil burner(calorific value 10×104kCal/h)
Spray media: hot (modified) asphalt,diluted asphalt,emulsified asphalt,etc.
Auxiliary power/rotation: 26kW/2350r/min
Overall dimensions: L×W×H=8530×2496×3350(mm)
Performance Characteristics:
1. Sino Truck Huanghe Commander chassis: high power, good performance, No.3 phase of national emission regulation;
2. Auxiliary engine is installed;
3. Separate manual control and automatic control are available for each nozzle;
4. Asphalt spray can be controlled in the console or on the operating platform at the end of vehicle.
5. PLC can regulate spray volume automatically according to the input working parameters and feedback parameters by vehicle speed detection.
6. Intelligent-control spray technology can modify parameters to accurately control the discharge capacity of asphalt pump, keeping spray precision error of ±2%.
7. The reliability of dynamic seal among each system is guaranteed by imported heat-resistance seal elements and special structure.
8. Apply high quality materials, improved structure design and proper processing technology at the joints among systems;
9.Heating system adopts Italian imported burner with function of automatic ignition and temperature control.
10.All the nozzles, pipelines and asphalt pump are heated and warm-kept by heat transfer oil in omnibearing circulation;
11.Gravity emptying device is able to thoroughly evacuate leftover asphalt from tank without running asphalt pump.
12.Key parts (such as hydraulic pump, hydraulic motor, asphalt pump, HTF pump, gas control valve, velocity radar, encoder, etc.) are all famous brands;
13.Side toolbox of optimization design delivers large capacity, good waterproof effects and nice appearance.
14.Ladders and handrails are equipped to each part for easy operation;
15.Heat insulation layers are laid outside all the heat pipes;
16.Reasonably-arranged tank connected joints prevent tank from moving frontward and backward in the process of driving and braking.
17.In-vehicle fast heating system (6—10℃/h) improves heating efficiency and shortens auxiliary working hours;
18.Asphalt spray bar is of three-section foldable structure.
19.Bumper bar is equipped at the end of vehicle to protect the spray bar.
20.Manual lance sprays locally.
21.Asphalt tank is equipped with deposit discharge groove inside and liquid level indicator, alarm and security devices.
22.Thanks to the warning signs and lighting installation, working at night is available.
23.Water-spray device prevent asphalt from sticking to the tires.
24.Hyperbaric air and a little of diesel oil can get rid of the leftover asphalt after construction;
25.Sound durable anti-corrosion insulating layer achieves that static insulation index is less than 12℃/8h.
26.Stainless steel board packing: anti-corrosion and durable.
