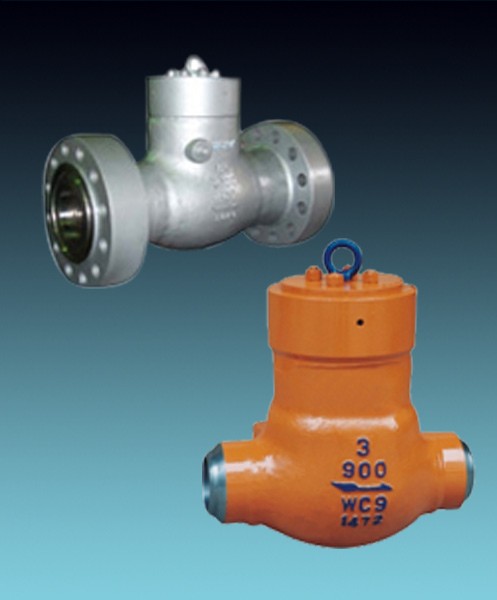

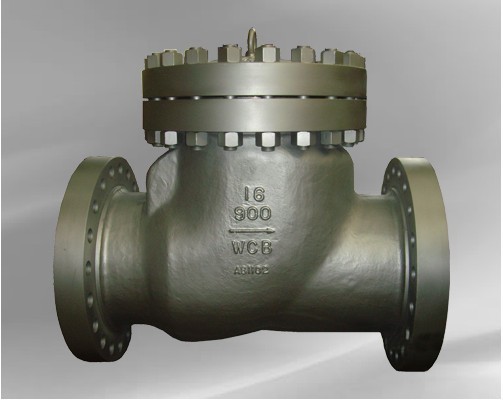

Cast Steel Check Valve

Pressure: Class 150LB~2500LB
Size: NPS2”~36”

Material:
WCB,LCB,LCC,WC6,C5,C12,CF8,CF8M,CF3,CF3M,CF8C,etc.

Design &Manufacture: BS1868, ASME B16.34, API6D

End flange dimension: ASME B 16.5( for NPS <24); ASME B 16.47 series B、API605 or ASME B 16.47 series A、MSS SP-44( for 24)

BW end dimension:ASME B 16.25

Face to face/End to end: ASEM B 16.10

Pressure-temperature ratings: ASME B 16.34

Inspection and Test: API 598 or API 6D

Wall thickness dimension: API600 and BS 1868

Class 150~ Class 300 Cast Steel Lift Check Valve

Class 600~ Class 900 Cast Steel Lift Check Valve
