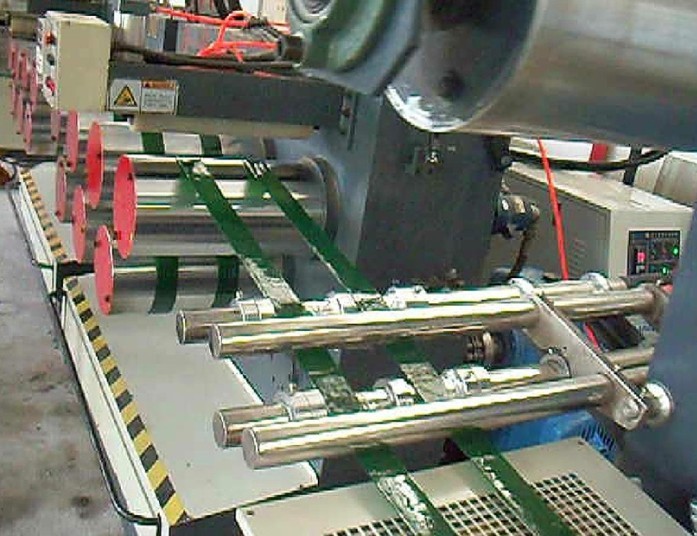

TS-75/32 PET Packing Strap Production line（Extruding one or two strap)

Price in total: FOB Qingdaoport US $52,500

Model---------------TS-75/32         Production line length-------25m

Motor power in total--------80kw     Product width----------------9-25mm

Motor control--------Converter     Product thickness-----------0.5—1.2mm   Drying volume---------------750L     Max. output------------120kg/h

Drying power----------------30kw      Worker: 2/shift

This machine is used for 100% PET bottle flake material

Extension at break: ≥40kg/mm³

Stretch rate at break: ≤14%

Density:1.380 g/mm³

Raw material viscosity: above 0.8

Flake material viscosity:≥0.72

Production line process flow:

PET material---crystallization and drying device—TS-75/32 single screw extruder---hydraulic screen changer device---melt metering pump---mould ---cooling constant temperature water box(casting trough)---de-water device→7 rollers pre-heater---hot wind heating stretching machine---5-roller stretching machine---hot calibrating machine---haul off machine---winder
