Features

Specifications

CPU

Type

Z670(1.5G 512K)

Install Method

BGA

Power Consumption

3W

Level 2 Cache

Depend on CPU

Major Chipsets

Chipsets

SM35

System Memory

Capacity

SMT on board

Type

Support up to 800

Max. Memory

2GB (Maximum)

Display

LCD (16:9)

10.1" 16:9 TFT LCD

Resolution  1024*600

Storage

HDD

SSD HDD, SATA interface, 8G/16G/32G

Graphic

Graphic Controller

Integrated

I/O Devices

Point Device

Touch Panel(Multi-finger support)

Web Cam

1.3M Pixel

Card Reader

MicroSD card (TF card)

Sensor

G-Sensor/Gyro Sensor/Compass

Communications

Networking devices

Integrated 10/100/1000 bps Ethernet

Wireless networking devices

802.11 b/g/n & Bluetooth(Bluetooth Optional)

3G module(Optional)

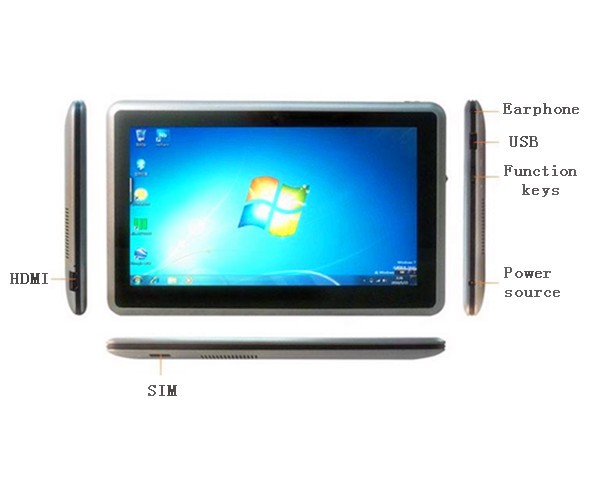

I/O Port

Standard

2× USB 2.0 connectors

1× Headphone-out/MIC-in jack

1× DC-In jack

1× TF card reader slot

1× SIM card slot (Option with 3G module)

1×HDMI

1×Push Button Switch

Audio

Features

High Definition AudioStereo

support two (1.5 W per each channel) speakers

Internal Microphone

Keyboard

Keyboard type

USB Keyboard (option)

POWER

AC Adapter

90~ 265V AC, 50~60Hz  Output: 19V, 2.2A, 40W

Battery Pack

Polymer Battery ,7.4V ,2S1P, 6200mHA

Power Management

Suspend

Hot key suspend (User selectable in OS Power Management Menu)

Lid close suspend (User selectable in OS Power Management Menu) Resume the system by pressing any key ( Suspend to RAM )

Dimensions & Weight

173 x 267 x 17.5

TBD

Cosmetic

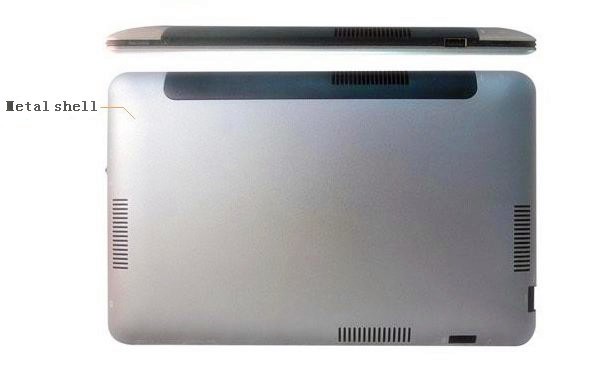

Case

A: Glass

B: Plating

Brand Name

Logo

TBD

MS Windows OS

Windows 7 Starter/Premium,

OS Certification

MS Windows Logo

Windows7
