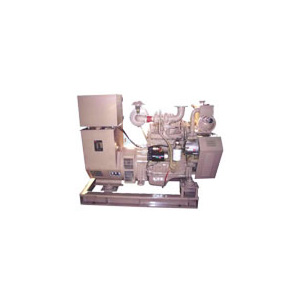

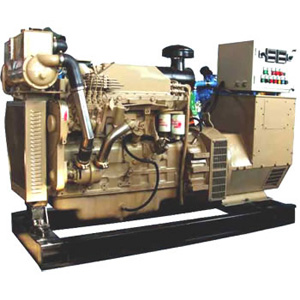

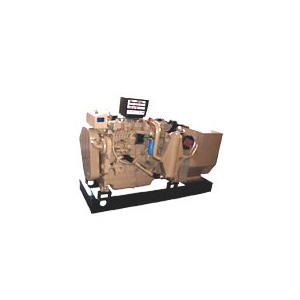

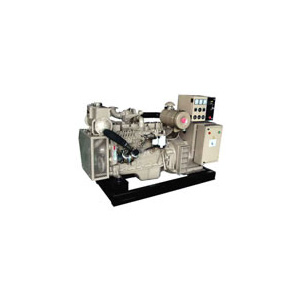

Chinese Cummins series marine diesel generating sets are composed of 4BT, 6BT, 6CT, NT, KT marine engines produced by Chinese Cummins joint venture, (D683 series engine is made By Shanghai Diesel Engine Co., Ltd) Company and Stamford or Marathon series brushless 3 phase generators.
The gensets possess closed cooling water system and protection features for high water and oil temperature, low oil pressure and over～speed. The rotor of generator is designed of non～salient pole type and provided damping windings and brushless THYRIPART excitation system.
Engine collection:
fresh～sea water cooling system; heat exchange; Fresh, sea water pump; expansion tank; water cooled manifold(For D683 engine)
Both engine and alternator are mounted on common steel structural base frame. With isolators installed.
Features:
24V DC electric system with battery
control panel with voltage, ampere, frequency, oil pressure, water temperature, hour meter, emergency stop button
air cleaner Captive 4～point mounting system with vibration isolator mounts. Structural steel skid with convenient 4～point lifting arrangement.
Engine protecting system: High speed, High water temperature, Low oil Pressure.
