Performance Characteristics:

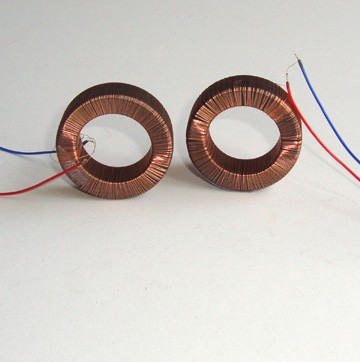

Using Fe-based amorphous material and toroidal core, with high saturation induction density
and permeability and low loss, it is widely used for high frequency main transformer, magnetic
amplifier and choking coil of pus-pull or half-bridge and full-bridge switching power supply.
Performance Comparison of amorphous Alloy Core and Ferrite:
|
Performance Parameters |
Amorphous Core |
Ferrite Core |
|
Saturation Magnetic Induction Bs(T) |
1.25 |
0.5 |
|
Residual Magnetic Induction Bs(T) |
0.2 |
0.20 |
|
Iron loss(0.2T/20KHZ )(W/kg) |
≤ 4 |
7.5 |
|
Iron loss(0.5T/20KHZ )(W/kg) |
≤ 35 |
Can not be used |
|
Iron loss(0.3T/50KHZ )(W/kg) |
≤ 50 |
Can not be used |
|
Permeability u(20 KHZ )(Gs/0e) |
20,000 |
2 ,000 |
|
Coercivity Hc(A/m) |
≤ 1.60 |
6 |
|
Resistivity ρ (μΩ * cm ) |
120 |
10 6 |
|
Curie Temperature ( ℃ ) |
570 |
150 |
Specification :customized sizes are available
|
9.3/13.5*10 |
10/14*3.2 |
11/20*8 |
13.5/26.5*12.5 |
14/21*8 |
|
9.5/12.7*2.5 |
10/14*4.7 |
11/21*16.5 |
13.8/16.8*2.5 |
14/22*8 |
|
9.5/12.7*3.5 |
10/14*5 |
11/22*11.5 |
13.9/23.8*10 |
14/23*10 |
|
9.5/12.8*2.5 |
10/14*6.5 |
11/22*20 |
13/17*3.2 |
14/23.5*18.5 |
|
9.5/12.8*3.2 |
10/14.5*5 |
11/24*20 |
13/17*4 |
14/24*10 |
|
9.5/13*5 |
10/15*25 |
11/24*20 |
13/17*6 |
14/26*25 |
|
9.5/15.3*5 |
10/15*4.5 |
12.2/19.5*8 |
13/17*6.5 |
14/26*6.5 |
|
9.6/12.7/3.5 |
10/15*6 |
12.3/18.8*4.5 |
13/17*8 |
15.5/23*10 |
|
9.6/13.2*10 |
10/16*10 |
12.5/19*9 |
13/17.5*6.5 |
15/18*20 |
|
9.6/13.5*10 |
10/16*15 |
12.5/20.5*15 |
13/17.6*0.35 |
15/18.5*7 |
|
9.6/15*10 |
10/16*5 |
12.5/24*10 |
13/17.8*5 |
15/18.6*4.5 |
|
9.6/16*3.85 |
10/16*8 |
12.5/24*20 |
13/18*5 |
15/18.6*4.5 |
|
15/19*6.5 |
17.3/23.5*10 |
19/28*12 |
23/33*15 |
30/38*20 |
|
15/19.5*10 |
17/19*14 |
19/28*13.5 |
23/33*20 |
30/40*10 |
|
15/19.5*2.2 |
17/22*10 |
19/28*6 |
23/33*25 |
30/40*13 |
|
15/19.5*5.5 |
17/22*13.5 |
19/28.6*2.5 |
24.2/37.8*15 |
30/40*15 |
|
15/20*7 |
17/23*12 |
19/30*20 |
24.5/30*15 |
30/40*8 |
|
15/20.8*3.2 |
17/23*15 |
19/34*13.5 |
24.5/40.5*10.5 |
30/41*15 |
|
15/21*10 |
17/24*20 |
19/40*15 |
24/30*20 |
30/42*3.5 |
|
15/21*10 |
17/24*8 |
20/25*10 |
24/47*15 |
30/50*15 |
|
15/21*10 |
17/24*8 |
20/25*6.5 |
25/28.5*4.5 |
30/50*8 |
|
15/21*7 |
17/25*10 |
20/25*6.5 |
25/29*10 |
30/60*20 |
|
15/21*8 |
17/28*8 |
20/25*8 |
25/32*10 |
30/60*25 |
|
15/21.5*9 |
17/40*6.5 |
20/26*10 |
25/32*12 |
31.2/38.2*6 |
|
15/22*14 |
18.5/24.5*6.5 |
20/26*5 |
25/32*6.5 |
31.5/34.5*4 |
|
15/22*16 |
18.5/27*15 |
20/27*10 |
25/32*6.5 |
31/38*15 |
|
15/23*12 |
18.5/27*8 |
20/27*15 |
25/32*8 |
31/39*13 |
|
15/23*5 |
18.5/27*8 |
20/28*15 |
25/33*12 |
31/39*9 |
|
15/23*8 |
18.5/28.5*14 |
20/30*10 |
25/40*10 |
31/40*10 |
|
15/24*15 |
18.6/22*11 |
20/30*12 |
25/40*12.5 |
32.5/37.5*5 |
|
15/24*6 |
18/22*3.2 |
20/30*15 |
25/40*15 |
32.5/37.8*6 |
|
15/24*6.5 |
18/23*10 |
20/30*15 |
25/40*20 |
32/37.5*3.2 |
|
15/25*10 |
18/23.5*10 |
20/30*20 |
25/40.5*12.5 |
32/38*6.5 |
|
15/25*10.5 |
18/24*10 |
20/30*6.5 |
25/43*25 |
32/38*8 |
|
15/25*13 |
18/24*10 |
20/30*8 |
26.2/32.2*10 |
32/40*15 |
|
15/25*13 |
18/24*11 |
20/31.5*9 |
26.7/48*10 |
32/41*15 |
|
15/78*30 |
18/24*12 |
20/32*10 |
26/31*6.5 |
32/44*20 |
|
16.45/22*0.35 |
18/24*5.5 |
20/32*10 |
26/32*3.2 |
32/44*6.5 |
|
16.5/23.5*15 |
18/25*12 |
20/32*15 |
26/32*5 |
32/50*10 |
|
16.7/11.6*15.4 |
18/26*10 |
20/37*18 |
26/38*12 |
32/50*13 |
|
16/21*10 |
18/28*10 |
21/29*10 |
27.5/30.5*4 |
32/50*15 |
|
16/23*10 |
18/28*15 |
21/29.4*5 |
27.5/33.5*4 |
32/50*20 |
|
16/23*15 |
18/28.5*10 |
21/30*6.5 |
27/38*8 |
32/52*16 |
|
16/23*4 |
18/30*15 |
21/30*7 |
27/46*10 |
32/62*24 |
|
16/23*6 |
19.6/25.4*3.5 |
22/27*4 |
27/46*20 |
33.5/39.5*4 |
|
16/23*8 |
19/22*11 |
22/28*4 |
27/46*25 |
33.5/42*12 |
|
16/24*7.5 |
19/23*10 |
22/28*5 |
28/32.5*3 |
33.8/39.8*4 |
|
16/25*10 |
19/25*10 |
22/30*5 |
28/34*5 |
34/36*6 |
Consult online  |
