Model Number: F550-E

Minimum Order Quantity : 50 Piece/Pieces

Supply Ability: 1000 Piece/Pieces per Month

1) Size & Weight :

- ExternalSize (H x W x D): 552 x 452 x 350(mm); 21.7 x17.8 x13.8(inch)

- Internal Size ( H x W x D): 470 x 370x 250(mm); 18.5 x14.6 x9..8 (inch).

- Interior Cubic feet : 1.53ft³

- Net Weight:   65±2kg /143±4 lbs

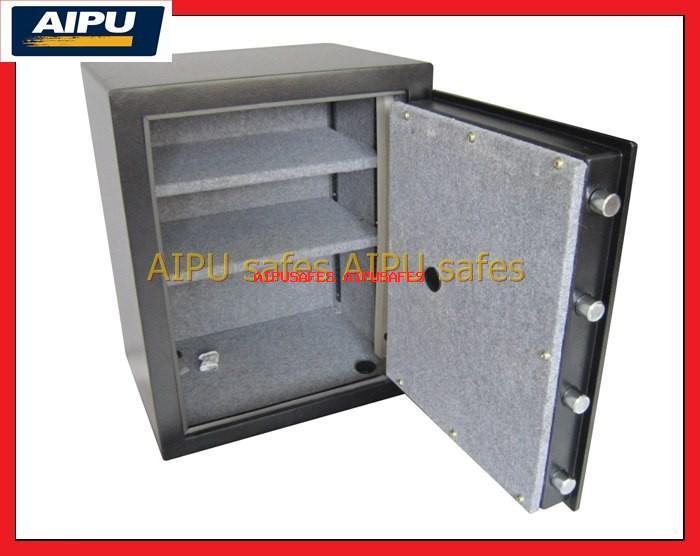

2) Interior and shelving

- 2 adjustable shelves

- 6 side carpeted walls

3) Material

- Single wall solid steel plate body & door , fire protection gypsum board , fire activated expanding door seal.

 - Steel thickness : 4mmfor body , 8mm for door

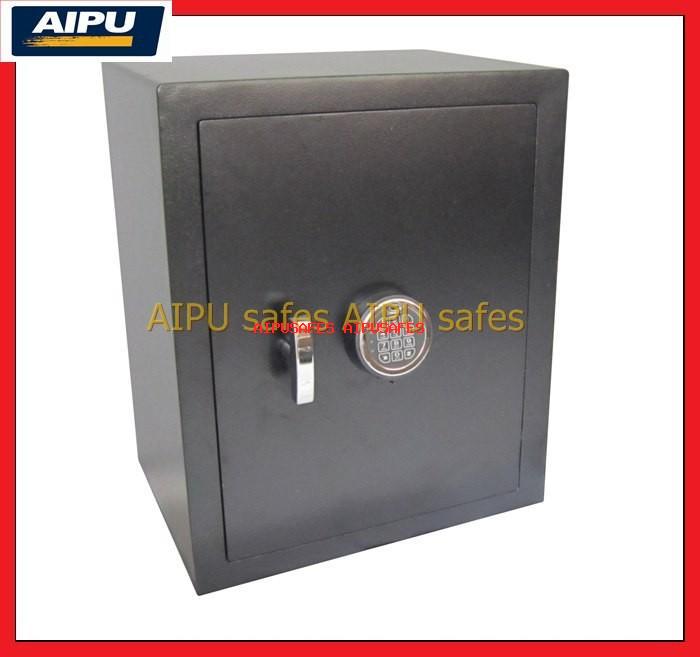

4) Lock & handle

- T-shaped chrome plated diecast handle

- Push button electronic key pad with swing bolt lock

- two user code , 1~8 digit password

 - no override key system to prevent unauthorized entry

- Lock option and corresponding model :

F550-K : Hige security double bitted key lock.

F550-E : Push button electronic key pad with swing bolt lock

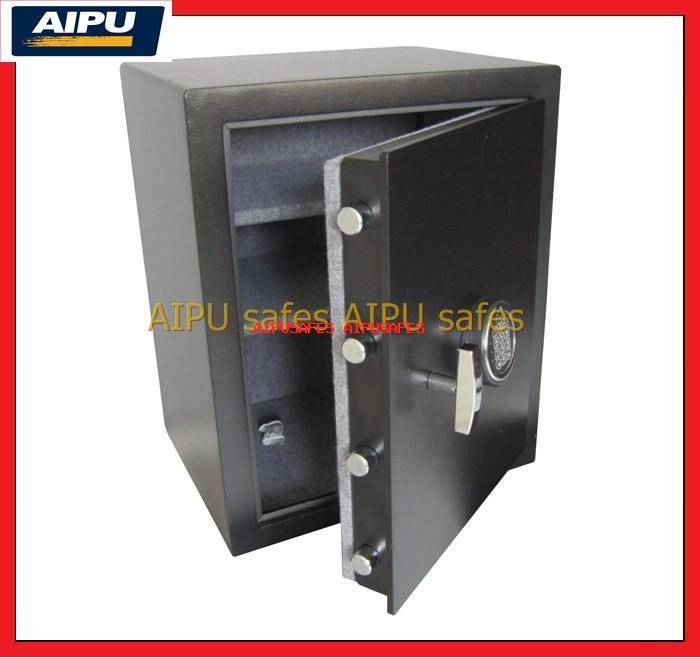

5) Security feature

- Chrome plated 25mm dim solid steel boltwork ,

- Inner hinge to prevent hinge cutout

- Extra strong dead bars to prevent prying attack.

- Direction and q’ty of bolt ( Horizental – top – bottom – deadbar) : 4-0-0-3

- Anti drilling hard plate for door .

- Additional manganized hardplate protecting each bolt deterring from side attack.

- 30 minutes fire protection for paper documents.(Factory test)

6) Color and Finish

- Durable powder coat black

- Color option : other color available for order q’ty over than 100 pcs.

7) Accessory

- Two anchor bolt holes(9.5mm)on the bottom .

Two anchoring bolt (8mm) and plastic bolt hole covers included. .

- Fire activated expanding door seal.

8) Standard option :

- Customer Logo : Please contact us for MOQ and additional cost.

- Please contact us if you have other needs.

9) All model in the same serise.

 ** Sales restricted area :Europe
