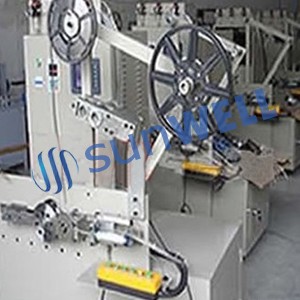

Automatic Winder for SWG can make spiral wound gasket with or without inner & outer ring, attaching high quality inner size molds. Work pressure is changed with dia. Size controlled by air pump. Automatic work controlled by PD, auto welded, Especially for large batch fewer specification.

Machine specification

1.Power: 380AV, 50HZ, 1.5KW

2. H x W x H = 1.6 x 1.2 x 1.7m

3. N.W: appr. 700KGS

4. Line speed: Transducer control

5. Work range: OD 50 ~ 500mm, thickness :4.5mm

6. Normal for ASME B 16.20, from 2'' to 18''. Other standard on request

If you want to know more about our Automatic, please dont' be hesitated to contact with sunwell.
