Non-Metallic Electrical Conduit    LIQUID TIGHT CONDUIT AND TUBING  PVC REINFORCEMENT CONDUIT  SPRIAL RENFORCEMENT CONDUIT  CORRUGATED REINFORCEMENT CONDUIT

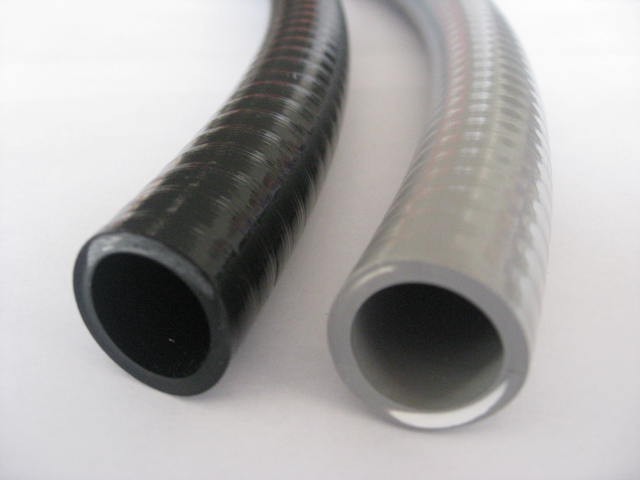

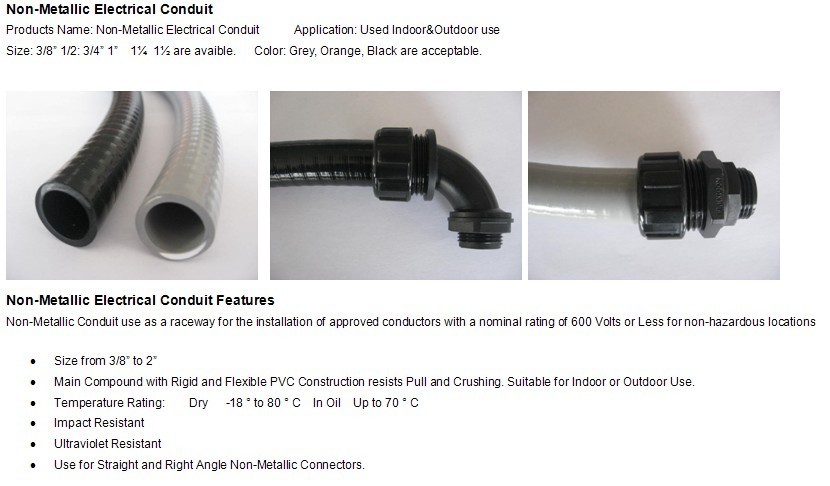

Products Name: Non-Metallic Electrical Conduit      Application: Used Indoor&Outdoor use

Size: 3/8" 1/2: 3/4" 1"  1¼  1½ are avaible.   Color: Grey, Orange, Black are acceptable.

Non-Metallic Electrical Conduit Features
Non-Metallic Conduit use as a raceway for the installation of approved conductors with a nominal rating of 600 Volts or Less for non-hazardous locations

• Size from 3/8" to 2"
• Main Compound with Rigid and Flexible PVC Construction resists Pull and Crushing. Suitable for Indoor or Outdoor Use.
• Temperature Rating:    Dry   -18 ° to 80 ° C  In Oil  Up to 70 ° C
• Impact Resistant
• Ultraviolet Resistant

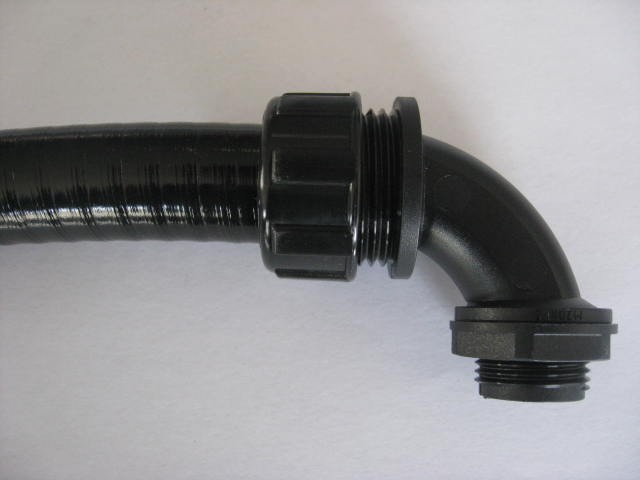

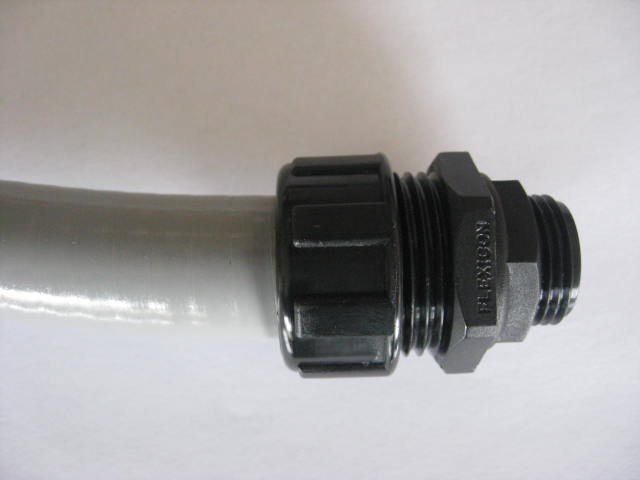

• Use for Straight and Right Angle Non-Metallic Connectors.

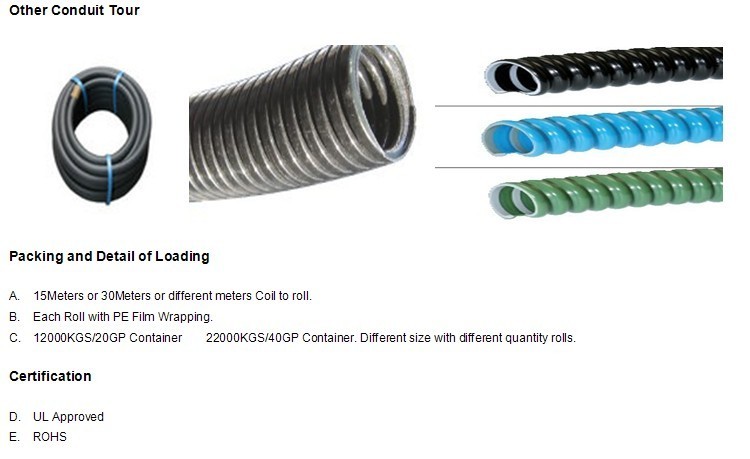

Packing and Detail of Loading

A.       15Meters or 30Meters or different meters Coil to roll.

B.       Each Roll with PE Film Wrapping.

C.      12000KGS/20GP Container    22000KGS/40GP Container. Different size with different quantity rolls.

Certification

D.      UL Approved

E.       ROHS
