Specification

Types of FPC we can produce: Single-side FPC, double-side FPC, multilayer FPC, aluminum substrate, copper substrate, single-side hollowed-out FPC and double-side hollowed-out FPC

Thinnest substrate : Copper foil/PI film: 18/12.5 um 12/18um

Smallest wire width and distance : 0.05mm/0.05mm (2mil/2mil)

Smallest aperture : 0.25mm (10mil)

Resistance to flexural cracking : > 150,000 cycles

Etching tolerance : ± 0.5 mil

Tolerance for exposure and alignment : ± 0.05mm (2mil)

Tolerance for projection punching : ± 0.025mm (1mil)

Tolerance for PI film alignment : < 0.10mm (4mil)

Tolerance for reinforcing and take alignment : < 0.1mm (4mil)

Maximum processing area : 25cm × 50cm for double side; 25 cm × 10000cm for single side; 25cm × 25cm for multilayer

Forming tolerance : ± 0.05mm

Mode of surface treatment :

Electroplated guiding : 1-5u "

Chemical gilding : 1-3u "

Pure electroplating tine : 4-20u "

Chemical tin : 1-5u "

Antioxidatio n (OSP) 6-13u "

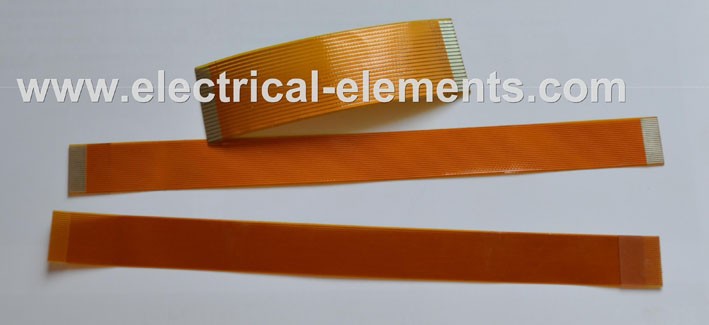

Flexible Printed Circuit(FPC) For:

1. Notebook computer, LCD display, CD driver and hard disk;

2. Printer, facsimile machine, scanner and sensor;

3. Mobile phone, mobile phone battery, intercom, antenna and ribbon wire for mobile phone;

4. Various types of high-end cameras, digital cameras, digital videocorder and DV;

5. Magnetic head and laser head for videocorder, CD-ROM, VCD, CD and DVD;

6. Instrumentation for aerospace, satellite, medical apparatus and automobile;

7. LED bar, LED FPC flashlight, toy, chaplet and lantern decoration;

8. LED aluminum substrate, power aluminum substrate, high-power LED and copper substrate.

Package: according to customer's request. Polybag, Vacuum packing, Carton, wooden box, pallet are available.

MOQ: comply with customer's demand. OEM and ODM orders are welcome.

FOB Port: Ningbo, China
