Features
-- The 2nd generation Vapor Intelligent Chip
-- Upgradable Chip
-- 5W-50W Variable Wattage
-- 1.0V-9.5V Variable Voltage
-- Handle 0.2 ohm- 3.0 ohm Atomizer
-- The Output Volt Buck-Boost&Boost Available
-- By-pass (direct connection) mode, choose this mode,your vaporizer
can be used like mechanical mode
-- Gravity Sensor change the power automatically,up/down button for option
-- 0.66" OLED Screen
Yihiecigar is the Most pofessional and the biggest chip manufacture focus on Vapor from China

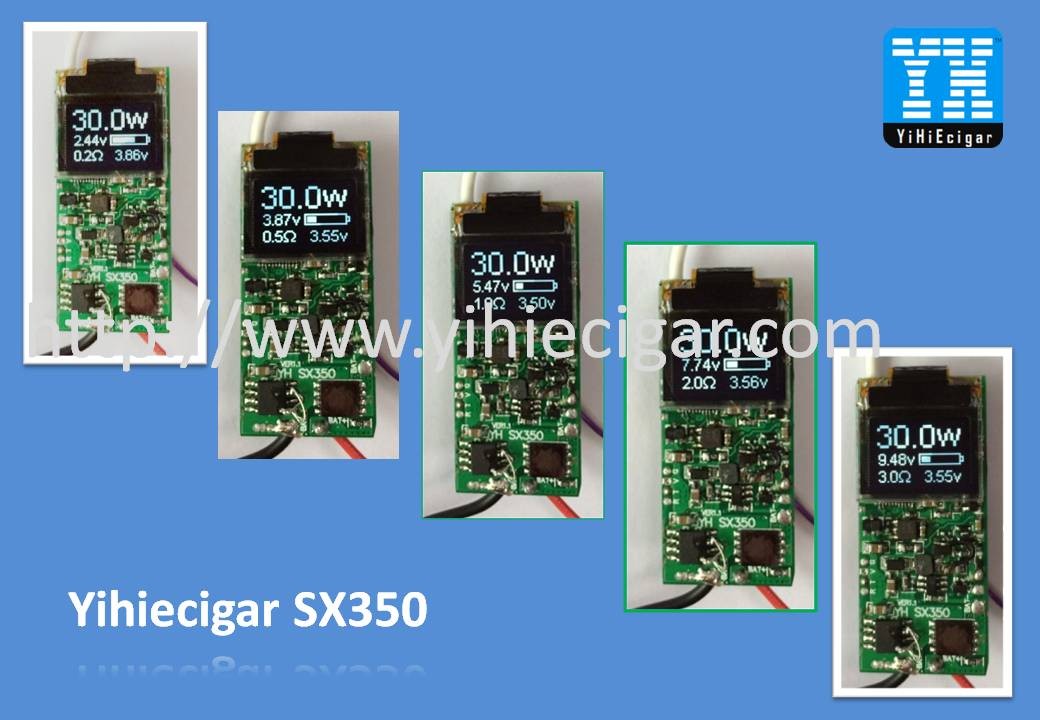

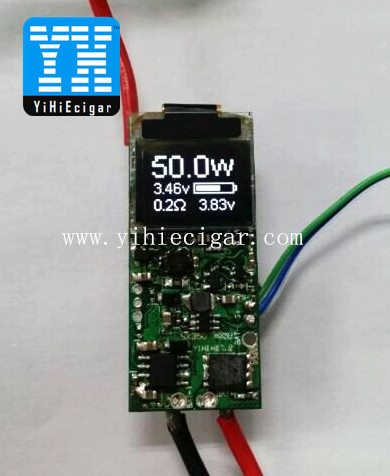

2014 Newest High end Products YiHi SX350 50W
Single Battery DC to DC Sustain Subohm 0.2 to 3.0 ohm VV/VW 5W to 50W 1.0V to 9.5V Yihiecigar
Warning :
IF you're not skilled, experienced, and comfortable with Electronics, Soldering, and Safety you should not be purchasing this chip! It is intended for experienced individuals.
The Output Current of your battery be required above 25 A, otherwise we do not suggest you upgrade your SX350 to 50W !
Specs of YiHi SX350 50W Yihieicgar
No.
Specs
Minimum
Typical
Max
1
Output Power
5 Watts
50 Watts
2
Output Voltage
1.0 Volts
9.5 Volts
3
Output Current
25.0A
4
Atomizer Resistance
0.2 Ohms
2.0 Ohms
3.0 Ohms
5
Bypass (Direct Connection Mode)
YES
6
Output Power (Bypass mode)
5 Watts (3 ohm)
80.0 Watts (0.2ohm)
7
Output Voltage (Bypass mode)
Battery Voltage-0.09V
8
Output Current (Bypass mode)
1.33 A
25.0 A
9
Input Voltage (Battery required above 25A )
3.2 Volts
3.7 Volts
4.5 Volts
10
Input Current
1.5 A
10.0 A
25.0A
11
Screen On Current
25 mA
12
Quiescent Current
1 mA
13
Power Down Current
350 uA
14
Efficiency
92%
15
Screen size
0.66" OLED
16
Fire Method
Only One Regular Fire Button
17
Adjust Power Method
Both Gravity Sensor & Up/Down Button adjust the Power
18
USB Charging for Battery
Yes 1A
19
App controlled Bluetooth
NO
20
Software Upgrade/GUI operate
YES
21
Charging for Mobile Phone
NO
22
Customize Logo
YES (above 120pcs,we can customize the logo for you)
23
Protection:
1. Reverse Polarity Protection
2. Output Short Protection
3. Low Resistance Protection
3. Battery low voltage Protection
4. Temperature Protection
Important Notice:
1. After upgrading successfully, please remember Reset your chip. Disconnect the battery or use "Link" to reset the chip (1. Press the fire button
down&keep 5 seconds to read the version information. 2. Press 5 times quickly to start up the chip. 3. Go to "Link" and tilt right&keep 5 seconds
untill the screen turn black. If unplug the USB, chip will start up automatically.)
2. The atomizer better less than 1 ohm. SX350 chip works better with subohm. If you did not connect with atomizer, chip default to 2.5 ohm resistance.
You need use Gravity adjust the power less than 36.1W. In this way, all of the features can be used normally.
3. Re the Temperature Protection, when the chip works overheat, "too hot" warning will remind you. After counting from 10 to 0, you can keep vaping again.
4. If you amended any part of SX350 chip(specially the software or changed to other Micro USB), the port of USB maybe will be locked and
unable to upgrade to 50W.
Any questions welcome to contact with us cari@yihiecigar.com skype:cari.yihi
