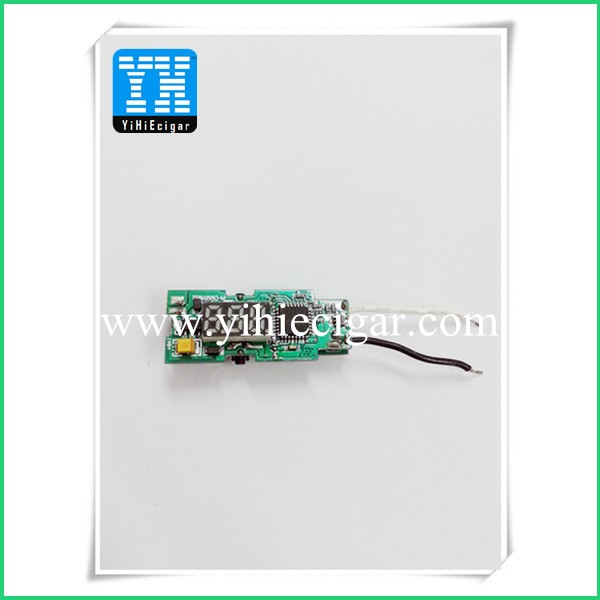

YiHiEcigar SVD
Place of Origin: Guangdong, China (Mainland)
Brand Name: YiHiEcigar
Model Number:YiHiEcigar SVD
Materials:FR4
Board Layer:2 Layers
Board Thinkness:1.0mm
Payment:: Paybal,Weston Union,T/T HSBC
Color:: Green
Release Date:March 2012
Battery:18650,18500,18350*1 or 18350*2
Variable Voltage:3V-6V
Variable Wattage:3W-15W
Screen type:0.25" LED
Specifications
--3V-6V Variable Voltage
--3W-15W Variable Wattage
--3 Fire Button and Side Button
(dna 20 mod innovator from China)
Features
--3V-6V Variable Voltage
--3W-15W Variable Wattage
--360 degree Rotary switch
Yihiecigar SVD 3-15W and 3-6Volts side switch LED
We are the DNA 20 Mod China Manufacture
Parameter of YiHi SVD
| No. | Parameter | Minimum | Typical | Max |
| 1 | Output Power | 3 Watts | 15 Watts | |
| 2 | Output Voltage | 3 Volts | 6 Volts | |
| 3 | Output Current | 1.0 A | 2.5 A | 3.2 A |
| 4 | Atomizer Resistance | 1.5 Ohms | 2.5 Ohms | 5.0 Ohms |
| 5 | Input Voltage(1or 2 battery) | 3.2 Volts | 3.7 Volts | 9 Volts |
| 6 | Input Current | 1.5 A | 3.6 A | 5.0 A |
| 7 | Screen On Current | 25 mA | ||
| 8 | Quiescent Current | 1 mA | ||
| 9 | Power Down Current | 300 uA | ||
| 10 | Screen size | 0.25" LED | ||
| 11 | Fire Button | 3 and buton on side | ||
| 12 | USB Charging for Battery | No | ||
| 13 | Software Upgrate/GUI operate | No | ||
| 14 | Charging for Mobile Phone | No | ||
| 15 | Customize Logo | No |
