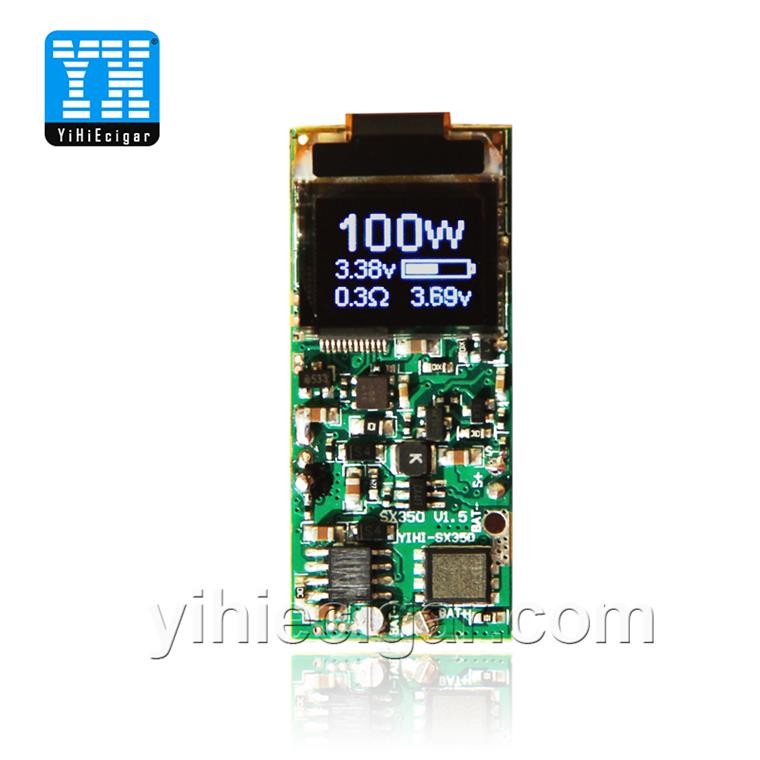

YiHi SX350 100w
Features
* The 2nd generation vapor intelligent chip
* Upgradable chip
* VW: 10W-100W
* VV: 1.0V-9.5V
* Buck-Boost&Boost
* OLED 0.66" Screen
Warning:If you're not skilled, experienced, and comfortable with Electronics,
Soldering, and Safety you should not be purchasing this chip! It is intended
for experienced individuals.
No. |
Specs |
Minimum |
Typical |
Max |
||
1 |
Output Power (2 Batteries) |
10 Watts |
50 Watts |
100 Watts New |
||
2 |
Output Voltage DC-DC Buck-boost& Boost together |
1.0 Volts |
5.0 Vots |
9.5 Volts |
||
3 |
Output Current |
1.25A |
12.0A |
40A New |
||
4 |
Atomizer Resistance |
0.15 Ohms New |
0.5 Ohms |
3.0 Ohms |
||
5 |
Input Voltage (2* 18650 & 7.4V Li-ion ) |
6.2 Volts |
7.4 Volts |
8.5 Volts |
||
6 |
Input Current |
1.5 A |
10.0 A |
40A New |
||
7 |
Screen On Current |
|
150 mA |
|
||
8 |
Quiescent Current |
|
1 mA |
|
||
9 |
Power Down Current |
|
300 uA |
|
||
10 |
Efficiency |
|
95% |
|
||
11 |
Screen size |
|
0.66" OLED |
|
||
12 |
Fire Method |
One Fire Button |
||||
13 |
Adjust Power Method |
Both Gravity Sensor (Tilt) and Up&Down Button Available |
||||
14 |
USB Charging for Battery |
NO |
|
|
||
15 |
App controlled Bluetooth |
NO |
|
|
||
16 |
Software Upgrate/GUI operate |
YES (YiHiEcigar SXi Software ) |
||||
17 |
Charging for Mobile Phone |
N/A |
|
|
||
18 |
Customize Logo |
YES |
|
|
||
19 |
Protection: |
1. Reverse Polarity Protection (required to solder an extra negative wire to the pinout labeled Bat - . Which is just above the Red positive wire on the right side of the board |
||||
2. Output Short Protection |
||||||
3. Low Resistance Protection |
||||||
4. Battery low voltage Protection |
||||||
5. Temperature Overheat Protection |
