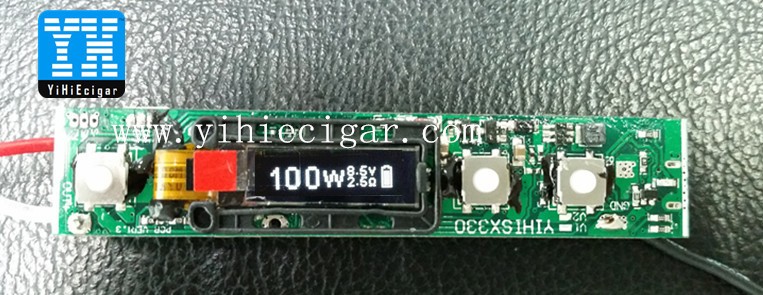

Features
--7W-150 Variable Wattage
--1.0V-7.0V Variable Voltage
--Sustain 0.1-3.0 Ohm Atomizer
--0.69" OLED Screen
Warning: IF you're not skilled, experienced, and comfortable with Electronics, Soldering, and you should not be purchasing this chip! It is intended for experienced individuals.
No. |
Specs |
Minimum |
Typical |
Max |
|
|
1 |
Output Power |
7 Watts |
|
150 Watts |
|
|
2 |
Output Voltage |
1.0 Volts |
7.0 Volts |
|
||
3 |
Output Current |
40.0 A |
|
|||
4 |
Atomizer Resistance |
0.1 Ohms |
1.5 Ohms |
3.0 Ohms |
|
|
5 |
Input Voltage ( Dual-Batteries) |
6.2 Volts |
8.5 Volts |
|
||
6 |
Input Current |
1.3 A |
10.0 A |
40.0 A |
|
|
7 |
Screen On Current |
25 mA |
|
|||
8 |
Quiescent Current |
1 mA |
|
|||
9 |
Power Down Current |
350 uA |
|
|||
10 |
Efficiency |
95% |
|
|||
11 |
Screen size |
0.69" OLED |
|
|||
12 |
Fire Method |
Regular Button |
|
|||
13 |
Adjust Power Method |
Up and Down Button |
|
|||
14 |
USB Charging for Battery |
No |
||||
15 |
Software Upgrade/GUI operate |
YES(YiHi SXi Driver&Upgrade Software) |
|
|||
16 |
Charging for Mobile Phone |
NO |
||||
17 |
Customize Logo |
YES (Need a certain quantity) |
|
|||
18 |
Protection: |
1. Reverse Polarity Protection |
|
|||
2. Output Short Protection |
|
|||||
3. Low Resistance Protection |
|
|||||
4. Battery low voltage Protection |
|
|||||
5. Temperature overheat protection |
|
|||||
FAQ:
Q. Why I can not get 150w when I use 1.0 ohm atomizer ?
A: 1. Pls check your atomizer and batteries. If you want to get high wattage, the atomizer be required from 0.1ohm to 0.3 ohm( we suggest 0.1ohm), and the batteries should be full charged 3.7V of each(base on sony VTC4/5).
Q: I did not find the upgrade software for SX330 from your webside ?
A: Yes, the upgrade software on our website is for SX350 instead of SX330. We will inform ahead if we have plan to release the new upgarde software on our website -News page.
Q: The driver "SXI" is same for SX330 and SX350 ?
A: YES
Any more questions pls contact with our custom service Cservice@yihiecigar.com
