Polycarbonate Switch (PK-MS-011)

  • Model:PK-MS-011
    • Send Inquiry Now Add to Inquiry Basket
    Bookmarkand Share
    • Products description:

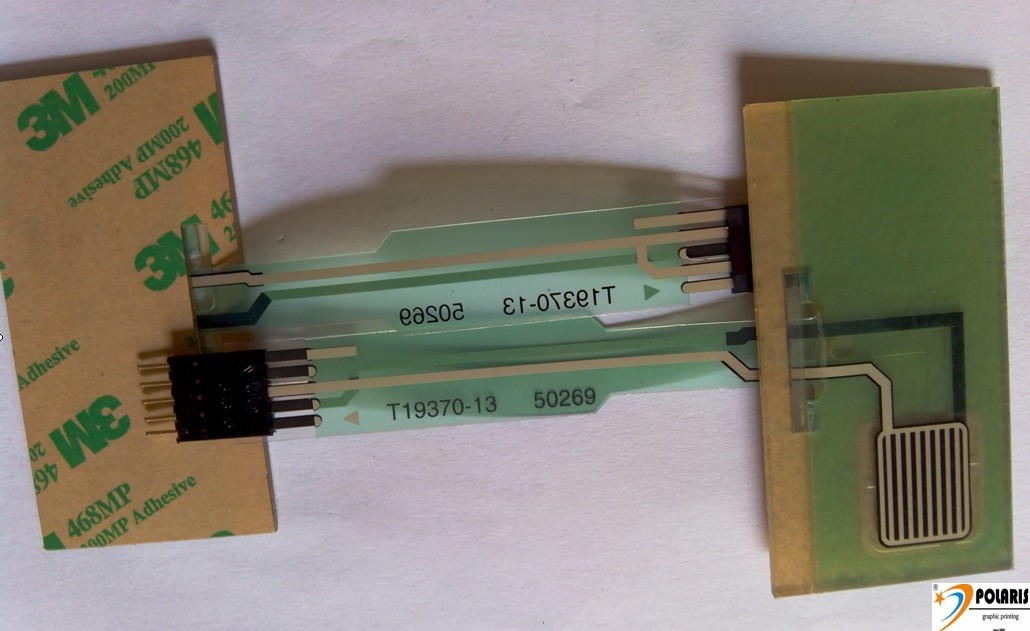

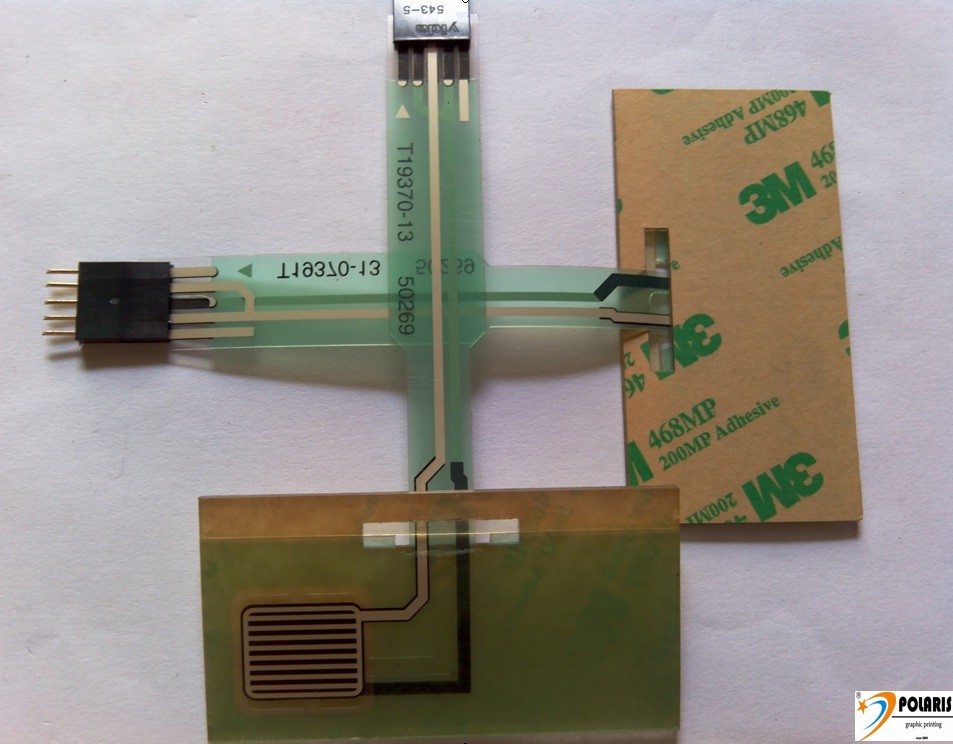

    • Product Images:

    Description:

    Features:
    Materials: PET and PC
    Conductive keypad panel with unique cosmetic design
    LED and EL backlight
    Silicone rubber keypad
    Flexible FPC
    EL plate
    Tail termination: either male or female connectors
    Waterproof type
    Embedded ITO touchscreen


    Specifications:
    Maximum circuit rating: 35V DC, 100mA, 1W
    Contact resistance: 10 to 500Ω (varied from the trace length and material)
    Insulation resistance: 100MΩ at 100V
    Dielectric withstand: 250Vrms (50 to 60Hz/minute)
    Contact bounce: 5ms or less
    Tactile type actuation force: 150 to400g(6 to14oz)
    Tactile type switch stroke: 0.6 to1.5mm
    Tactile type life expectancy: 1,000,000 closures or more
    Surface hardness: 3H or more
    OEM orders are welcome.

    Country of Origin:

    China

    Main Export Markets:

    Worldwide

    Payment Details:

    Payment Terms : T/T In advance

    Minimum Order : 100  Pieces

    Delivery Details:

    Lead Time : 12-15  Days
