Membrane Switches (PK-MS-012)

  • Model:PK-MS-012
    • Send Inquiry Now Add to Inquiry Basket
    Bookmarkand Share
    • Products description:

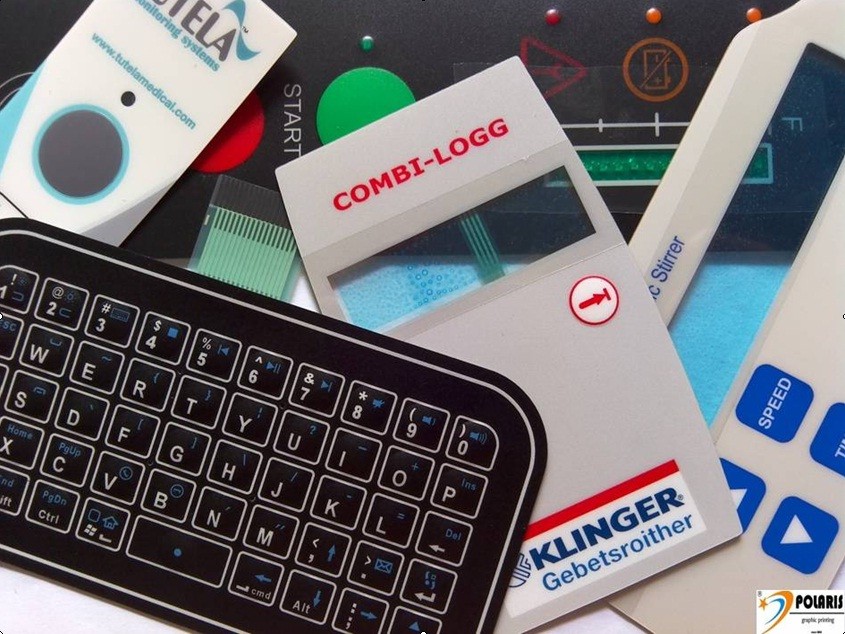

    • Product Images:

    Membrane switches, also called membrane keypad, are built from thin polyester film and pressure sensitive adhesive (PSA). Printed Circuit Boards (PCBs) can also be used as the base for a switch. Membrane switches can be tactile or non-tactile, depending on the design. Tactile switches provide a physical “click” when the user pushes it. Non-tactile switches have longer lives, but lack physical feedback to the user. Rubber keypads can be added to the top of the membrane switch as well.


    Membrane switches are used in many different applications in industrial and commercial fields, like medical, toys, gaming, aviation, boating, banking, test equipment, appliances, computers and printers and public information panels.



    Membrane switches have many advantages over other switches. They are thin and compact, have a low cost, are versatile and durable, user friendly and are moisture and dirt resistant. Additionally, they come in many visually-pleasing styles and colors suitable for any need.


    Item

    Description

    Technical capabilities

    1

    Max. Size:

    1100mm x2000mm

    2

    Overlay Material:

    PET: Autotype (Autotex F150，F200，F280, V150，V200，V280,

    Autoflex EBG130, EBG180, EBG250,EBA130, EBA180, EBA250)

    Autotex : XEV150, XEF200;

    Autostat CT3、CT4、CT5、CT7

    DuPont, Toray PET etc.

    Domestic Brand PET (Sichuan Dongfang)

    PC:  GE LEXAN--8010 8B35 8B35FHP92S HP40  FR700 FR60

     Bayer PC—Makrofol, /Bayfol, Marnot/ProTek

     Domestic Brand PC etc.

    3

    Spacer:

    3M Adhesive, NITTO、 TESA、 SONY、SEKISUI、 Domestic Adhesive

    4

    Back Adhesive:

    3M(Mainly), Others(Little)

    5

    Silver Paste:

    CHANGSUNG: CSP-3163, CSP-3352，CSP-5150；

    ACHESON：ED725A(6S-61)，ED 427SS，ED 479SS，ED 976SS HV；

    FUJIKURA and OTTI

    6

    Oil Ink:

    SEIKO, JUJO, DUBUIT, PROELL,NORCOTE UV

    7

    Carbon Paste:

    FUJIKURA, ACHESON ED 581SS, OTTI

    8

    Typical 6 Layers Metaldome Type

    Membrane Switch Structure

    Overlay + Spacer + Dome Retainer + Spacer + Circuit Layer+ Back adhesive

    9

    Typical 4 Layers Polydome Type

    Membrane Switch Structure

    Overlay + Spacer + Circuit + Back adhesive

    10

    Contact Resistance

    0.5-10Ω

    11

    Insulation Resistance

    ≥10MΩ (100VDC)

    12

    Base Material Voltage Durable

    2000V DC

    13

    Bounce Time

    ≤5ms

    14

    Working Current

    ≤100mA

    15

    Working Voltage

    ≤50VDC

    16

    Life

    ≥1,000,000 times

    17

    Key Travel

    Flat type:0.05mm-0.5mm, Tactile Type: 0.1-1.5mm

    18

    Working Temperature

    -40℃-+80℃

    19

    Actuation Force

    20-550g

    20

    Storage Condition

    Temperature: －40℃～＋85℃ ,Humidity: ≤98% RH

    21

    PET Circuit Tail Flexible Feature

    180°to any angle
