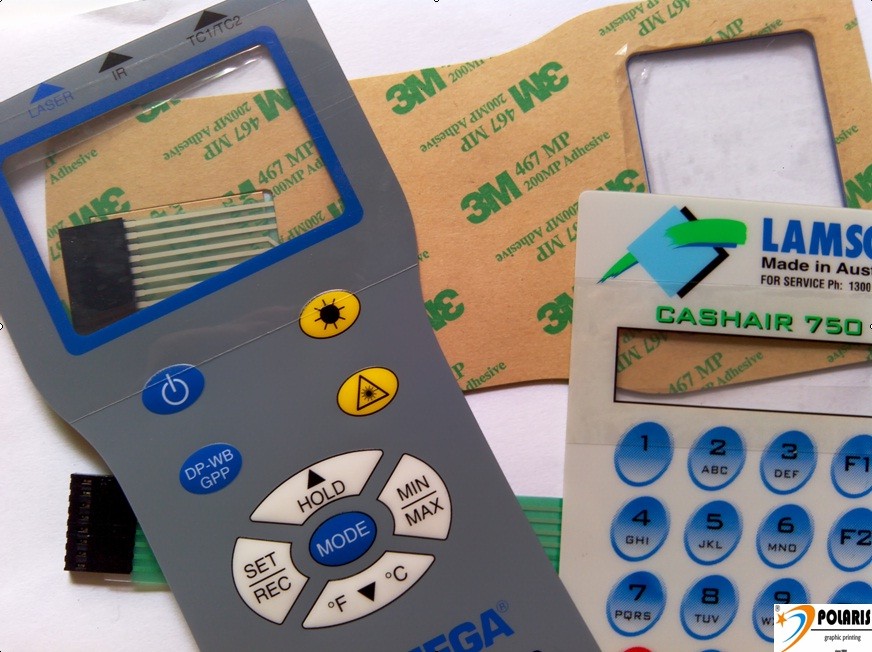

Description of membrane switch:

POLARIS-KEYPAD membrane switches can be built with surfacemountLEDsembedded into the switch package to provide a cost effective way for backlighting.

1: LEDs assembled on the PET circuit;

2: can assemble 0805, 1206 and other package type LEDs;

3: LED window on the overlay can be embossed or flat;

4: LED window can be clear or print transparent color;

5: long life;

6: low cost;

Physical Characteristics:

1) Life Cycles:

    1.1) 2 million minimum for non-tactile;

    1.2) 1 million minimum for tactile (metal or poly);

2) Operating Force:

     2.1) 4 -8 oztypical for non-tactile;

     2.2) 12 -20 ozfor typical tactile;

3) Overall Thickness:

     3.1) 0.035" typical embossed LED window;

     3.2) 0.050" to .077" typical flat overlay (depending on LED);

Electrical Characteristics:

Contact Resistance: 100 ohms maximum typical;

Open Circuit Resistance: 5 x 106 ohms minimum;

Contact Rating: 30 VDC max, 100 mA max, 1 watt max;

Contact Bounce: 20 ms max;

Contact Material: Silver to silver;
