Membrane Switch (PK-MC-001)

  • Model:PK-MC-001
    • Send Inquiry Now Add to Inquiry Basket
    Bookmarkand Share
    • Products description:

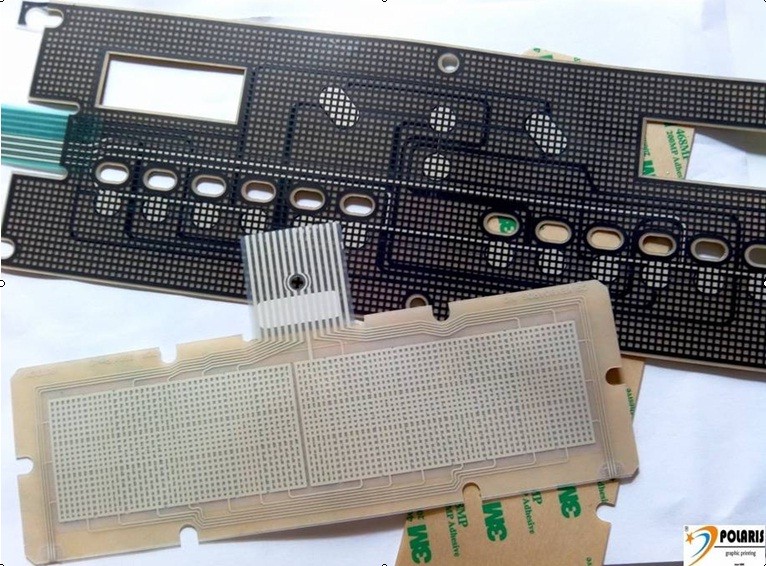

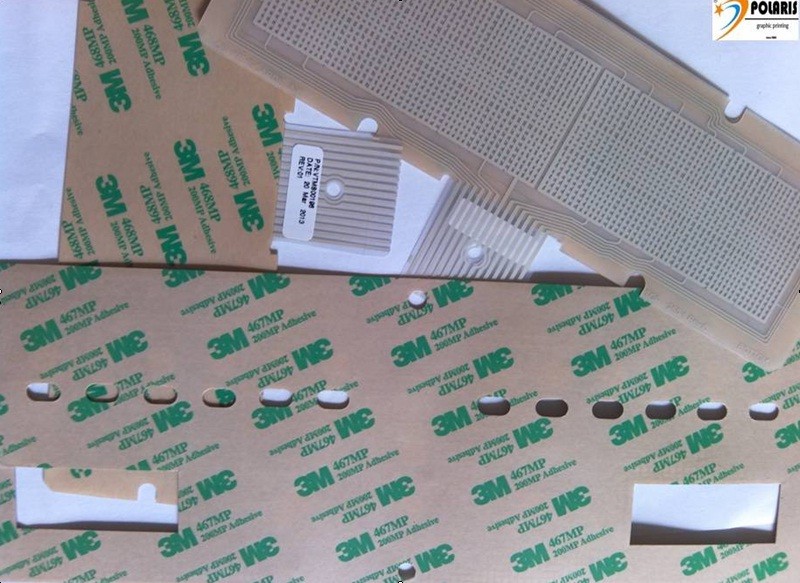

    • Product Images:
    Item
    Description
    		Technical capabilities
    1
    Max. Size:
    		1100mm x 2000mm
    2
    Overlay Material:
    PET: Autotype (Autotex F150，F200，F280, V150，V200，V280,
    Autoflex EBG130, EBG180, EBG250,EBA130, EBA180, EBA250)
    Autotex : XEV150, XEF200;
    Autostat CT3、CT4、CT5、CT7
    DuPont, Toray PET etc.
    Domestic Brand PET (Sichuan Dongfang)
    PC:  GE LEXAN--8010 8B35 8B35F HP92S HP40  FR700 FR60
     Bayer PC—Makrofol, /Bayfol, Marnot/ProTek
     Domestic Brand PC etc.
    3
    Spacer:
    3M Adhesive, NITTO、 TESA、 SONY、SEKISUI、 Domestic Adhesive
    4
    Back Adhesive:
    		3M(Mainly), Others(Little)
    5
    Silver Paste:
    CHANGSUNG: CSP-3163, CSP-3352，CSP-5150；
    ACHESON：ED 725A(6S-61)，ED 427SS，ED 479SS，ED 976SS HV；
    FUJIKURA and OTTI
    6
    Oil Ink:
    SEIKO, JUJO, DUBUIT, PROELL,NORCOTE UV
    7
    Carbon Paste:
    		FUJIKURA, ACHESON ED 581SS, OTTI
    8
    Typical 6 Layers Metaldome Type
    Membrane Switch Structure
    		Overlay + Spacer + Dome Retainer + Spacer + Circuit Layer+ Back adhesive
    9
    Typical 4 Layers Polydome Type
    Membrane Switch Structure
    		Overlay + Spacer + Circuit + Back adhesive
    10
    Contact Resistance
    		0.5-10Ω
    11
    Insulation Resistance
    		≥10MΩ (100VDC)
    12
    Base Material Voltage Durable
    		2000V DC
    13
    Bounce Time
    		≤5ms
    14
    Working Current
    		≤100mA
    15
    Working Voltage
    		≤50VDC
    16
    Life
    		≥1,000,000 times
    17
    Key Travel
    		Flat type: 0.05mm-0.5mm, Tactile Type: 0.1-1.5mm
    18
    Working Temperature
    -40℃-+80℃
    19
    Actuation Force
    		20-550g
    20
    Storage Condition
    Temperature: －40℃～＋85℃ ,Humidity: ≤98% RH
    21
    PET Circuit Tail Flexible Feature
    180°to any angle
