LED backlight membrane switch (PK-LEDMS-010)

  • Model:PK-LEDMS-010
    • Send Inquiry Now Add to Inquiry Basket
    Bookmarkand Share
    • Products description:
    • Product Images:

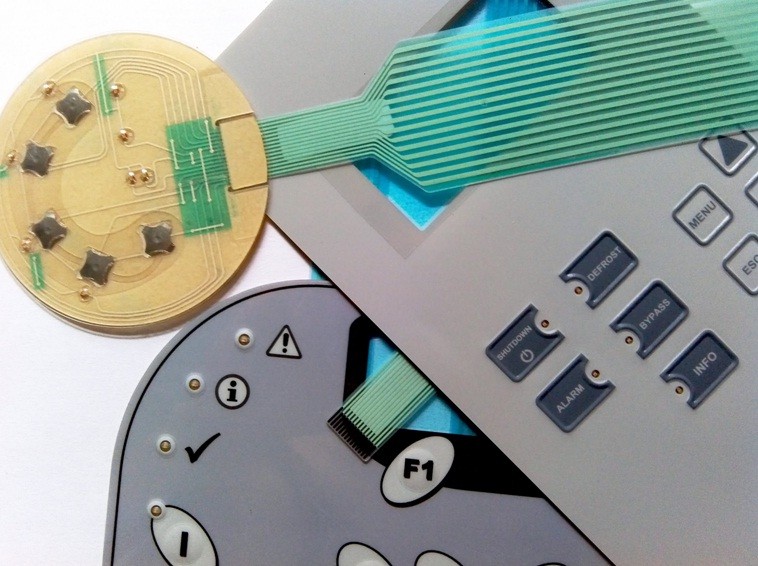

    POLARIS-KEYPAD membrane switches can be built with surface mount LEDs embedded into the switch package to provide cost effective way of backlighting.


    Specification:

    Environmental

    Operating Temperature

    -40°C to +80°C(-40°to176°F)



    Storage Temperature

    -40°C to +85°C(-40°to185°F)



    Humidity

    40°C, 90% to 95% for 240 hours



    Vibration

    20G's max.

    Mechanical

    Actuation Force

    Non-tactile60gto300g(2ozto10oz)





    Tactile150gto400g(6ozto14oz)



    Switch Stroke

    Non-tactile 0.1 to0.5mm



    Life Expectancy

    Tactile 0.6 to1.5mm





    Non-tactile >5 million actuations





    Tactile >1 million actuations

    Electrical

    Operating Voltage

    35 volts maximum



    Operating Current

    10 micro amps to 100 milliamps, resistive



    Operating Power

    1 watt maximum



    Circuit Resistance

    10 ohms to 500 ohms, dependent on size and layout



    Insulation Resistance

    100M ohms at 100V DC



    Dielectric Withstand

    >250 VRMs (50-60Hz 1 minute)



    Contact Bounce

    ≤ 5 milliseconds

    LED backlight membrane switch (PK-LEDMS-010)
