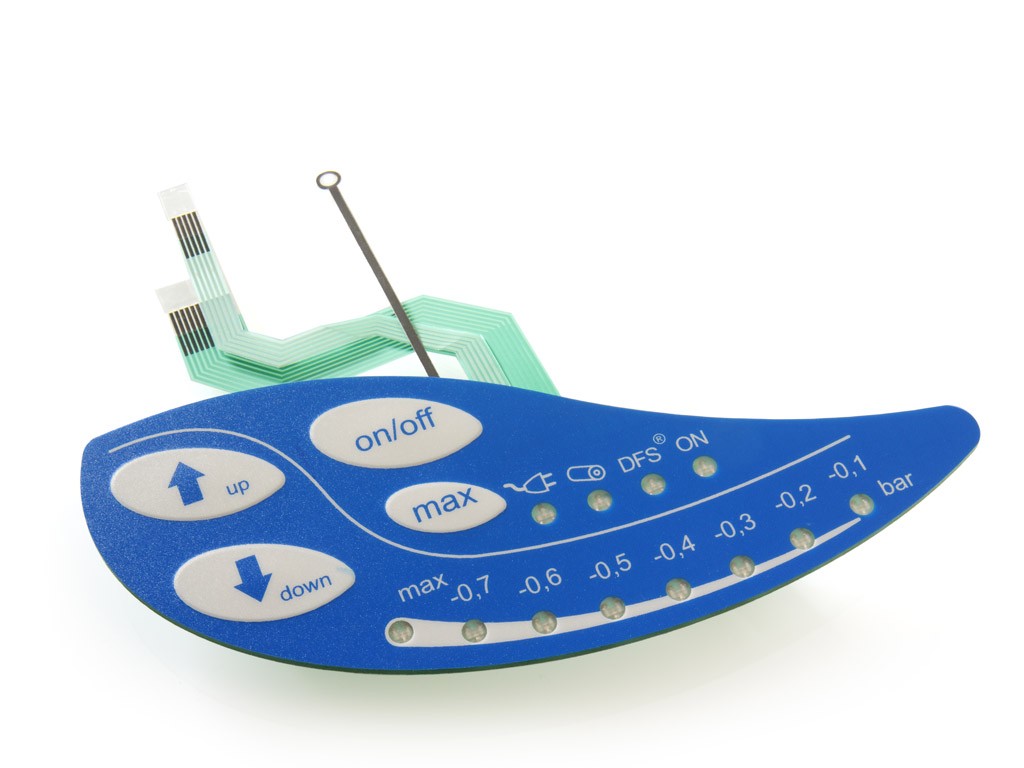

LED backlight membrane switch (PK-LEDMS-007)

  • Model:PK-LEDMS-007
    • Send Inquiry Now Add to Inquiry Basket
    Bookmarkand Share
    • Products description:
    • Product Images:

    Membrane Switch with LED Backlight:


    POLARIS-KEYPAD membrane switches can be built with surface mount LEDs embedded into the switch package to provide cost effective way of backlighting.


    The designs below demonstrate two methods. The flat membrane design will be the thicker design of the two.






    POLARIS-KEYPAD utilizes the best materials available today to ensure that your product is properly shielded according to your specifications. POLARIS-KEYPAD uses the most current technology in shielding against the following:


    ESD: Electrostatic Discharge
    EMI: Electromagnetic Interference
    RFI: Radio Frequency Interference

    Common Materials

    • Silver and graphite ink on polyester
    • ITO sputtered on polyester
    • Conductive elastomers
    • Metal foils or meshes


    POLARIS-KEYPAD can supply a wide range of methodologies to backlight your product. Some of the common solutions are listed below.


    LEDs
    This is the most cost effective method to backlight selective areas through using a wide variety of sub- straits, LED styles, sizes and colors.
