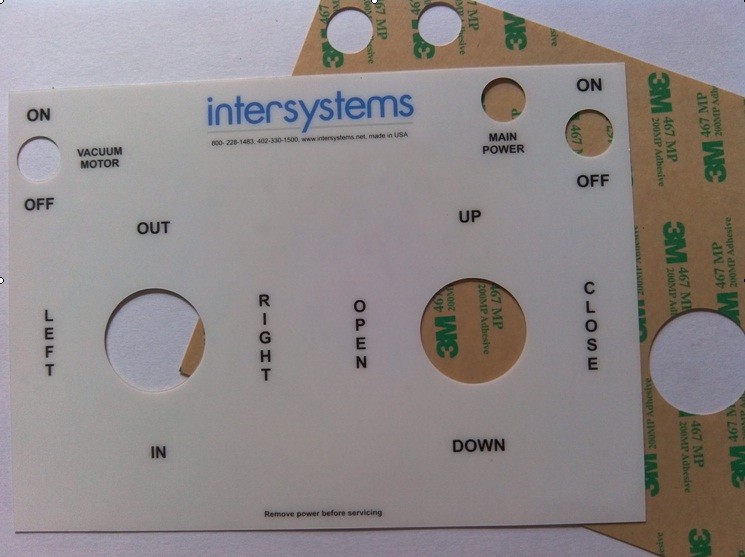

Graphic Overlay (PK-GO-001)

  • Model:PK-GO-001
    • Send Inquiry Now Add to Inquiry Basket
    Bookmarkand Share
    • Products description:
    • Product Images:

    An Overlay is a kind of silk screen printed or digital printed graphic sheet or panel that is placed on the surface of a product. Graphic overlays provide a high quality finish for products, communicate messages, and act as the interface between people and products. It can be made in many different ways, depending on the specifications of the application. A wide variety of graphic effects can be printed on different materials. The underside usually is covered with an adhesive layer backed with a liner.


    A wide variety of graphic effects can be printed on different materials. The underside usually is covered with an adhesive layer backed with a liner. During assembly the liner is removed so the graphic can be pressed onto the surface of the product. Overlays can be thick or thin, depending on the desired look. They can be just a few colors or they can be photographic in appearance.
    VIT utilizes extensive type of materials like Autotype PET, GE HP Lexan PC, Acrylic, PETG, Vinyl etc. for graphic overlays progress, which suits for various type of environment; we professionally design and manufacture high quality graphic overlays to serve industrial controls, household appliances, instruments and other markets.
    Material: Autotype PET, GE Lexan PC, Acrylic, PETG etc;

    Printing:     silk screen printing, digital printing;

    Embossing Buttons:     full button embossed, button rim embossed, logo embossed, that selected area embossed, LED windows embossed, can emboss any shape as per customer’s request;
    Window: leave some areas not be printed as the window;
    Cutouts: make somewhere be cutout which can be suitable to the bottom assembled components extended out;


    Item
    Description
    		Technical capabilities
    1
    Max. Size:
    		1100mm x 2000mm
    2
    Material:
    PET: Autotype (Autotex F150，F200，F280, V150，V200，V280,
    Autoflex EBG130, EBG180, EBG250,EBA130, EBA180, EBA250)
    Autotex : XEV150, XEF200;
    Autostat CT3、CT4、CT5、CT7
    DuPont, Toray PET etc.
    Domestic Brand PET (Sichuan Dongfang)
    PC:  GE LEXAN--8010 8B35 8B35F HP92S HP40  FR700 FR60
     Bayer PC—Makrofol, /Bayfol, Marnot/ProTek
     Domestic Brand PC, Acrylic, PETG etc.
    3
    Back Adhesive:
    		3M(Mainly), Others(Little)
    4
    Silver Paste:
    CHANGSUNG: CSP-3163, CSP-3352，CSP-5150；
    ACHESON：ED 725A(6S-61)，ED 427SS，ED 479SS，ED 976SS HV；
    FUJIKURA and OTTI
    5
    Oil Ink:
    SEIKO, JUJO, DUBUIT, PROELL,NORCOTE UV
    6
    Carbon Paste:
    		FUJIKURA, ACHESON ED 581SS, OTTI
    7
    Base Material Voltage Durable
    		2000V DC
    8
    Bounce Time
    		≤5ms
    9
    Life
    		≥1,000,000 times
    10
    Working Temperature
    -40℃-+80℃
    11
    Storage Condition
    Temperature: －40℃～＋85℃ ,Humidity: ≤98% RH
