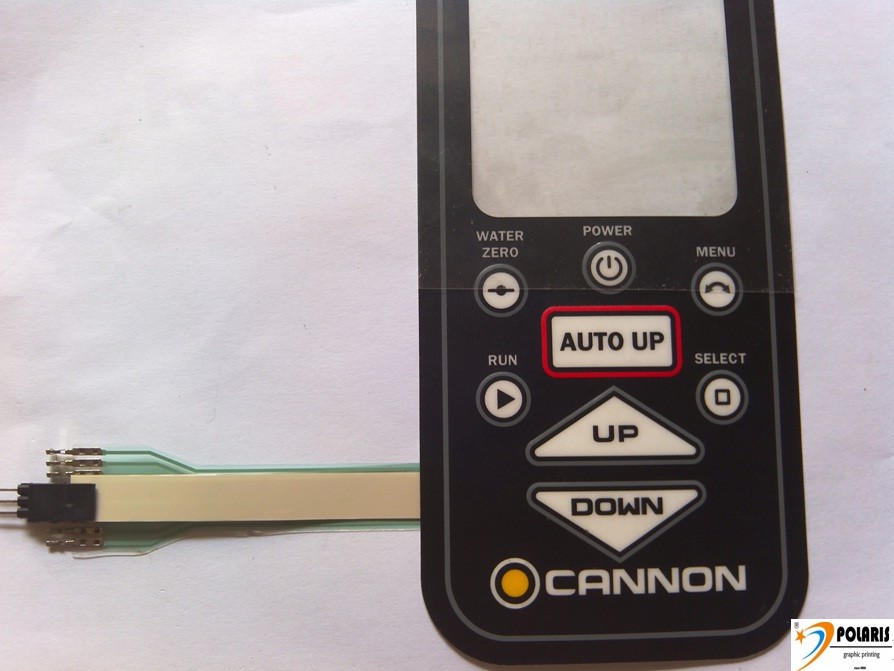

ELECTROLUMINESCENT BACKLIGHTING SOLUTIONS:

POLARIS-KEYPAD implements electroluminescent (EL) backlighting solutions for membrane switches and other various customer applications by printing phosphors between two conductive layers. Phosphors emit light when a DC Voltage is applied to them through one of the transparent conductive layers.

1. material: PET or PC;
2. adhesive: 3M adhesive;
3. type: flat,embossed,or metal dome;

4. backlight resource: El (with or without driver);
4. Passed ISO9001,ROHS;

Notice: We have the capacity to provide you membrane switches with other special requirements, such as Shielding, Windows/Lens Coating, Embossing, Embedded LEDs, UV glossy/matte/textured, etc.

Parameters:

Operating Voltage: 35V DC;
Operating Current: 100mA 1W;
Contact Resistance: < 100 Ohms;
Open Circuit Resistance: ≥ 10MΩ at 100V;

Operating Temperature: Flat/Metal dome:-20°cto +80°c;

Storage Temperature: Flat/Metal dome:-40°cto +80°c;

Life: Flat Type≥5,000,000 times; Tactile Type≥1,000,000 times;

Switch Stroke: 0.1 to1.2mm;
Contact Bounce: 5 to 30ms;
Actuation-Force Tolerance: +/- 20 to50g;
Tactile Ratio: > 40%;
Operating Humidity: up to 95% RH;
Female, male connector, ZIF, solder pins and heat seal connectors are available;

Packaging & Delivery

Packaging: PE bag, Carton, Wooden case;

COMMONT DECAY CURVES:
