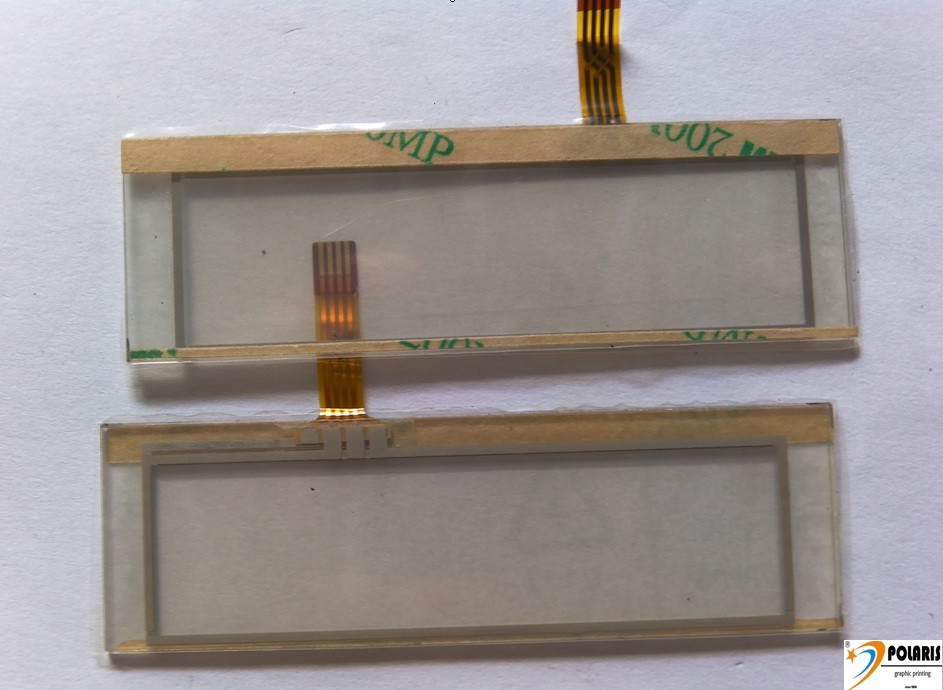

POLARIS-KEYPAD’s touchscreens are constructed of two electrically conductive and transparent layers (ITO coated film or glass). The opposing layers are held apart by nearly invisible separator dielectric dots. The layers are held together and sealed with a gasket adhesive which isolates the touchscreen from the outside environment. The transparent and conductive coating on each layer is etched to form distinct rows and columns of switches. Applying pressure to the flexible top layer creates a contact between the two conductive surfaces and completes the circuit. An electronic controller circuit performs the scanning of the rows and columns to determine the touch position.

Features and Benefits:

• Proven resistive technology
• Never needs calibration
• Simplicity of interface electronics
• Built to your exact specifications from 2" to 32" Diagonal
• Switches as small as 0.1"x0.1" (Dense switch pattern will require additional border area)
• The most reliable of the resistive technologies
• Bare finger, gloved hand or stylus input
• 1 year limited warranty

Options:

• Front Surface Treatments - Anti Glare, Anti Reflection, Scratch Resistant
• Optical Enhancements - Enhanced Light Transmission Touchscreen (ELTT), Sunlight Readable Touchscreen (SLRT), Privacy Viewing, Anti Newton Ring (ANR)
• Design Enhancements - See options section
