Product Catalogue

Hot Keywords

Original Image

taper roller bearing 30215

Model:30215

Size:75*130*27.25

Package:industrial packing

Products description:

http://www.eeebearing.com

Specifications

bearings
1.high quality
2.OEM serviec
3.China made bearings

bearings :

Features:

1)Series:30202-30226,30302-30320,32004-32024,32201-32228,31303-31320,32303-32320,33010-33022,33109-33118,33205-33220.

2)High-speed rotation,low-friction torque,low vibration and low noise.

3)Brand:HGN and neturel brand

4)Material:chrome steel GCR15 and high carbon steel GCR11

5)Packing:industrial box and single packing.

Taper roller bearings are for industrial use and auto parts.The taper roller angles allow the bearing to handle a combination of radial and thrust loads.The steeper he cup angle,the greater the ability of bearing to handle thrust loads.

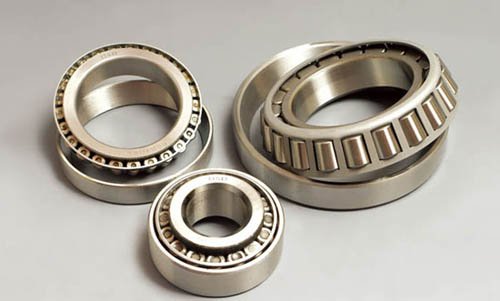

Taper Roller Bearings

Bore d	Outside Diameter D	Width T	Basic Load Rating KN		Eff. Load Center a	Basic Bearing Number	Min Shaft Fillet R R	Width B	Min Housing Fillet r	Width C	Weight kg
Bore d	Outside Diameter D	Width T	Dynamic Cr	Static Cor	Eff. Load Center a	Basic Bearing Number	Min Shaft Fillet R R	Width B	Min Housing Fillet r	Width C	Weight kg
0.6693 17	1.5748 40	0.5217 13.25	20.7	21.9	9.9	30203	0.039 1.0	0.4724 12	0.039 1.0	0.4331 11	0.078
0.7874 20	1.8504 47	0.6004 15.25	28.2	30.6	11.2	30204	0.039 1.0	0.5512 14	0.039 1.0	0.4724 12	0.124
0.9843 25	2.0470 52	0.6398 16.25	32.2	37.0	12.5	30205	0.039 1.0	0.5906 15	0.039 1.0	0.5118 13	0.151
1.1811 30	2.4409 62	0.6791 17.25	43.3	50.5	13.8	30206	0.039 1.0	0.6299 16	0.039 1.0	0.5512 14	0.229
1.3780 35	2.8346 72	0.7185 18.25	54.2	63.5	15.3	30207	0.059 1.5	0.6693 17	0.059 1.5	0.5906 15	0.328
1.5748 40	3.1496 80	0.7776 19.75	63.0	74.0	16.9	30208	0.059 1.5	0.7087 18	0.059 1.5	0.6299 16	0.419
1.7717 45	3.3465 85	0.8169 20.75	67.9	83.6	18.6	30209	0.059 1.5	0.7480 19	0.059 1.5	0.6299 16	0.474
1.9685 50	3.5433 90	0.8563 21.75	73.3	92.1	20.0	30210	0.059 1.5	0.7874 20	0.059 1.5	0.6693 17	0.529
0.5906 15	1.6535 42	0.5610 14.25	22.9	21.6	9.6	30302	0.039 1.0	0.5118 13	0.039 1.0	0.4331 11	0.094
0.6693 17	1.8504 47	0.6004 15.25	28.3	27.2	10.4	30303	0.039 1.0	0.5512 14	0.039 1.0	0.4724 12	0.129
0.7874 20	2.0472 52	0.6398 16.25	33.1	33.2	11.1	30304	0.059 1.5	0.5906 15	0.059 1.5	0.5118 13	0.165
0.9843 25	2.4409 62	0.7185 18.25	46.9	48.1	13.0	30305	0.059 1.5	0.6693 17	0.059 1.5	0.5906 15	0.263
1.1811 30	2.8346 72	0.8169 20.75	59.0	63.1	15.3	30306	0.059 1.5	0.7480 19	0.059 1.5	0.6299 16	0.387
1.3780 35	3.1496 80	0.8957 22.75	75.3	82.6	16.8	30307	0.079 2.0	0.8268 21	0.059 1.5	0.7087 18	0.515
1.5748 40	3.5433 90	0.9941 25.25	90.9	107.6	19.5	30308	0.079 2.0	0.9055 23	0.059 1.5	0.7874 20	0.747
1.7717 45	3.9370 100	1.0728 27.25	108.9	129.8	21.3	30309	0.079 2.0	0.9843 25	0.059 1.5	0.8661 22	0.984

Product Images:
