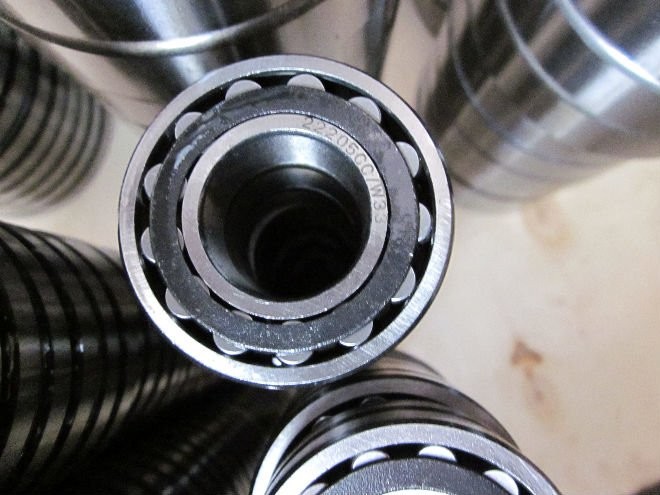

spherical roller bearing 22224K/MW33

Model:bearing 22224K/MW33

Size:120*215*58

Package:industrial packing

Products description:

Spherical roller bearing have two rows of rollers with a common sphered raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis.This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending

Linqing EEE bearing company is one of the manufacturers in China dedicated to the production, research, development and sale of bearings.the products covers from the bore of 20mm to the O.D.6300mm of nine categories of nearly 1,000 species including the deep groove ball bearing,Taper roller bearing, Inch-taper roller bearing, Self-aligning ball bearing, Cylindrical roller bearing, Spherical roller bearing, Pillow block ball bearing, Electric motor bearing ect. We also could offer OEM service and produce various kinds of bearings according to clients' special requirements.

Spherical roller bearings are leading in design and can, in addition to high radial loads, accommodate high axial loads acting in both directions.

Specifications

1.Materil:bearing steel(Gcr15),

2.Cage:brass cage,bearing steel(Gcr15)

3.Sperical roller part number:

21***,22***,24***,series bearings

4.Mini bearing size which ID ranges from:6mm to 10mm

Extra-large size ball bearing which ID ranges from:600mm to 2000mm

5.High precision beairng and non-standard bearing according to customers' drawings or samples

Spherical roller bearings

Specification		Boundary dimensions(mm)			Mass(kg)	Specification		Boundary dimensions(mm)			Mass(kg)
Cylindrical Bore	Tapered Bore	d	D	B	Mass(kg)	Cylindrical Bore	Tapered Bore	d	D	B	Mass(kg)
22205	22205K	25	52	18	0.160	22334	22334K	170	360	120	57.900
22206	22206K	30	62	20	0.260	22336	22336K	180	380	126	67.500
22207	22207K	35	72	23	0.390	22338	22338K	190	400	132	78.100
22208	22208K	40	80	23	0.480	23022	23022K	110	170	45	3.750
22209	22209K	45	85	23	0.530	23024	23024K	120	180	46	4.110
22210	22210K	50	90	23	0.570	23026	23026K	130	200	52	5.990
22211	22211K	55	100	25	0.760	23028	23028K	140	210	53	6.520
22212	22212K	60	110	28	1.040	23030	23030K	150	225	56	7.900
22213	22213K	65	120	31	1.430	23032	23032K	160	240	60	9.660
22214	22214K	70	125	31	1.510	23034	23034K	170	260	67	13.000
22215	22215K	75	130	31	1.590	23036	23036K	180	280	74	17.100
22216	22216K	80	140	33	1.930	23038	23038K	190	290	75	17.600
22217	22217K	85	150	36	2.410	23040	23040K	200	310	82	22.400
22218	22218K	90	160	40	3.110	23122	23122K	110	180	56	5.700
22219	22219K	95	170	43	3.820	23124	23124K	120	200	62	7.840
22220	22220K	100	180	46	4.620	23126	23126K	130	210	64	8.680
22222	22222K	110	200	53	6.780	23128	23128K	140	225	68	10.500
22224	22224K	120	215	58	8.450	23130	23130K	150	250	80	15.800
22226	22226K	130	230	64	10.500	23132	23132K	160	270	86	20.300
22228	22228K	140	250	68	14.500	23134	23134K	170	280	88	21.800
22230	22230K	150	270	73	18.400	23136	23136K	180	300	96	27.500
22232	22232K	160	290	80	23.200	23138	23138K	190	320	104	34.500
22234	22234K	170	310	86	28.900	23140	23140K	200	340	112	42.600
22236	22236K	180	320	86	30.200	23218	23218K	90	160	52.40	4.520
22238	22238K	190	340	92	35.500	23220	23220K	100	180	60.30	6.600
22240	22240K	200	360	98	42.700	23222	23222K	110	200	69.80	9.540
