MODEL NO.

DEMENSIONS(dxDxB)

22209K+H309

40×85×23

22210K+H310

40×85×23

22211K+H311

50×100×25

22212K+H312

55×110×28

22213K+H313

60×120×31

22215K+H315

65×130×31

22216K+H316

70×140×33

22217K+H317

75×150×36

22218K+H318

80×160×40

22219K+H319

85×170×68

22220K+H320

90×180×46

22220CAK/W33+H320

90×180×46

22222K+H322

100×200×53

22224K+H3124

110×215×88

22238CAK/W33+H3138

190×340×92

22308K+H2308

35×90×40

2309K+H2309

40×100×45

22310K+H2310

45×110×50

22311K+H2311

50×120×55

22312K+H2312

55×130×60

22313K+H2313

60×140×48

22315K+H2315

65×140×73

22316K+H2316

70×170×80

22317K+H2317

75×180×80

22318K+H2318

80×190×90

22320K+H2320

90×215×100

22322K+H2322

100×240×110

22324K+H2324

110×260×120

22326K+H2326

115×280×130

22328K+H2328

125×300×140

22336K+H2336

160×380×180

23126CK+H3126

115×210×92

23134K/W33+AH3134/YA

170×280×88

231/560CAKF3/W33+AH31/560

560×920×280

23268CK+H3268

340×620×224

LINQING EEE BEARING CO.,LTD.

1

Company Introduction

EEE is specialized in the production of roller bearing. With superior quality, abundant stock and exellent service, we are confident to meet even exceed your expectation each time you inquiry!!!

2

Main Products

Spherical Roller Bearing

Cylindrical Roller Bearing

Tapered Roller Bearing

Spherical Thrust Roller Bearing

3

ID size

25MM-1000MM

4

Certificate

ISO9001-2000

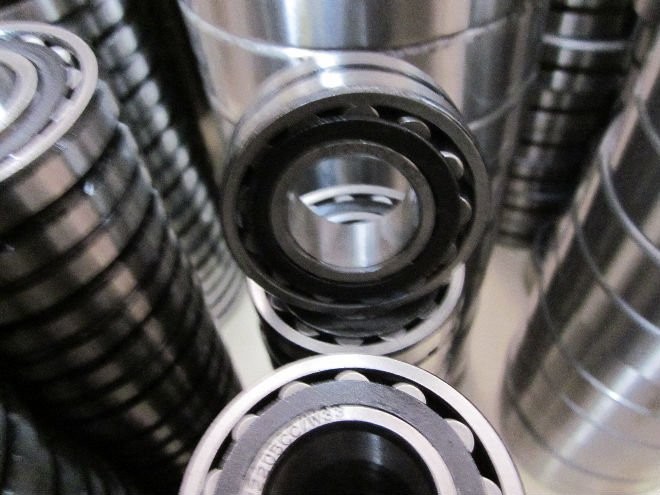

Spherical Roller Bearing

5

Description

    Spherical roller bearings are inherently self-aligning and very robust.They have two rows of rollers which make the bearings able to carry heavy loads.The present EEE range of spherical roller bearings mainly includes CC, CA, CAE, MB and E type.EEE can provide a wide range of sizes of several ISO Dimension Series and also includes special designs, for example, for vibrating screens and other applications.Special bearings can also be customized as required based on the standard bearings.

6

Material

GCr15/GCr15SiMn

7

Cage

Brass/Steel

8

Hardness

HRC60-HRC64

9

Closures

Unsealed/Sealed

10

Quatity

ABEC- 1,ABEC-3

11

Clearance

C0,C3,C4

12

Lubrication

Lubrication Groove &3 Holes in Outer Ring

13

Structure

Spherical Roller Bearing CC series

Spherical Roller Bearing CA series

Spherical Roller Bearing CAE series

Spherical Roller Bearing  MB  series

Spherical Roller Bearing E series

18

Features:

These bearings are featured y the extremely big axial load carrying capacity and meanwhile they can also carry certain radial load

19

Packing

1.Polybag+box packing

2.Industrial standard packing

20

Application

Steel industry, oil industry,cement industry,mining&construction, papermaking machinery,rolling mill, sugar mill, vibrating screens,  conveyors, air blower, transmissions,  and other heavy machinery
