Vibrating Roller SWC208H

Products Visitors:1635
  • Product Name:Vibrating Roller SWC208H
  • Model:SWC208H

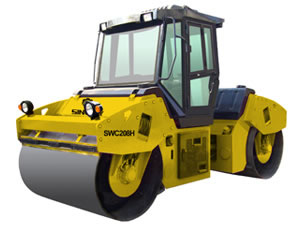

SWC208H Double Drum Vibrating Roller (Hydraulic Transmission)

Main Specifications of SWC208H Double Drum Vibrating Roller

Engine
Model 4BT3.9
Power rate 100KW
Rated speed 2200rpm
Type Vertical ,water cooling, four stroke, direct injection
Rated fuel consumption 210 g/kw·h
Traveling performance
Grade ability 40%
Traveling speed (km/h) 0-11.1
Axle
Drive type Dual wheel drive
Front axle load 4000 kg
Rear axle load 4000 kg
Working equipment
Type Hydraulic vibration
Frequency 40/46 Hz
Amplitude 0.67/0.34 mm
Static linear load 231 N/cm
Vertical oscillation
Drum shell thickness 20 mm
Centrifugal force(high ampl.) 120 KN×2
Centrifugal force(low ampl.) 60 KN×2
Brake system
Travel brake Oil cut off brake
Parking brake Button operated
Steering system
Type Articulated frame, hydraulic steering
Steering cylinder Two cylinders
Steering pump Gear pump
Working pressure 13MPa
Steering angle ±35º
Min. steering radius 5605 mm
Refill capacity
Hydraulic tank 55 L
Vibrating bearings 20L
Coolant liquid 34 L
Reducer 2.6L
Fuel tank 80L
Engine crank case 16L
Dimensions
Overall length 4562 mm
Overall width 1850 mm
Overall height 2930 mm
Drum width 1730 mm
Wheel base 3717 mm
Drum Dia 1050 mm
Min. ground clearance 324 mm
