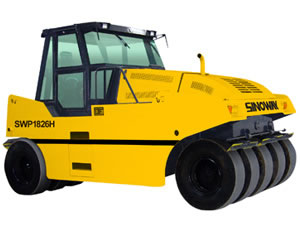

Tire Roller SWP1826

Products Visitors:1925
  • Product Name:Tire Roller SWP1826
  • Model:SWP1826


SWP1826 Pneumatic Tire Roller (Mechanical Transmission)

Main Specifications

Engine
Model 6BTA5.9
Power rate 125 KW
Rated speed 2000rpm
Type Vertical water cooling four stroke direct injection
Rated fuel consumption 200 g/kw·h
Traveling performance
Grade ability 20%
Traveling speed (km/h)
Forward I 3.5
Forward II 7.8
Forward III 13.2
Forward IV 20.75
Reverse I 3.5
Reverse II 7.8
Axle and tire
Type of main reducer Spiral bevel gear
Gear Ratio 1:6.17
Final reducer Chain driven
Chain gear Ratio 1: 2.17
Single tire load (F) 1560 kg
Front axle load (R) 1560 kg
Tire number(F+R) 5+6
Tire size 11.00-20-16
Working data
Max. operation weight 26000 kg
Min. operation weight 18000 kg
Average ground pressure 150-300 Kpa
Tyre pressure 200-800 Kpa
Roller width 2790 mm
Vertical oscillation ±100 mm
Brake system
Parking brake Hand operated drum brake
(Oil cut off brake for SWP1826H)
Service brake
Air-over-hydraulic disc brake
(Hydraulic brake for SWP1826H)
Steering system
Type hydraulic steering
Working pressure 13MPa
Steering cylinder Φ90×50×260 mm
Min. steering radius 8000mm ( outer side)
Refill capacity
Hydraulic tank 67L
Gear box 10 L
Fuel tank 220L
Engine crank case 16L
Dimensions
Overall length 4878 mm
Overall width 2800 mm
Overall height 3103 mm
Wheel base 3800 mm
Tyre specification 11.00-20-16
Min. ground clearance 300 mm
