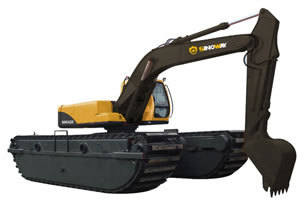

Specifications of Amphibious Excavator
| Engine | |
| Model | Mitsubishi 4D34TL |
| Type | Turbocharged, water cooled |
| Rated power | 86.5kw |
| Rated speed | 2200rpm |
| Main Technical Specification | |
| Operating weight | 20000kg |
| Standard bucket capacity | 0.4m3 |
| Slewing speed | 13.6rpm |
| Stick digging force | 51KN |
| Bucket digging force | 72KN |
| Hydraulic System | |
| Main pump | Korea |
| Main valve | Korea |
| Motor | Korea |
| Hydraulic pressure | 30Mpa |
| Traveling System | |
| Traveling speed | 3.0Km/h |
| Grade ability | 70% |
| Ground pressure | 0.013Mpa |
| Dimensions | |
| Overall length | 10213mm |
| Overall width | 5280mm |
| Overall height | 4325mm |
| Ground clearance | 1171mm |
| Track length of ground | 3990mm |
| Track gauge | 3640mm |
| Track width | 1508mm |
| Operating Scope | |
| Stick length | 3900mm |
| A: Max cutting height | 11352mm |
| B: Max dumping height | 9205mm |
| C: Max digging depth | 7360mm |
| D: Max reach | 10811mm |
