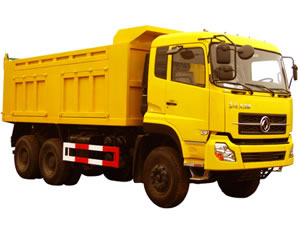

Main Specifications of Tipper (Dump Truck)
| Dimensions: | |
| Overall size(length × width × height) | 8150mm×2500mm×3400mm |
| Cargo body size(length × width × height) | 5400mmx2500mmx1500mm |
| Wheelbase | 3800mm+1350mm |
| Wheel track(Front/Rear) | 2027mm/1820mm |
| Minimum ground clearance | 300mm |
| Weight: | |
| Kerb mass | 12300kg |
| Pay loading capacity | 30000kg |
| Gross vehicle weight | 42300kg |
| Axle loading capacity(Front/Rear) | 12000/2x15000kg |
| Performance: | |
| Maximum driving speed | 80km/h |
| Minimum turning circle | 18m |
| Maximum gradeability | 35% |
| Approach angle | 30° |
| Departure angle | 24° |
| Fuel consumption | 35L |
| Engine | |
| Model | Cummins L290-30 |
| Type | 6 cylinder in line, turbo charged, air-air intercooled, diesel engine |
| Rated power | 215kW(290HP) |
| Maximum torque at 1200~1400rpm | 1180(N.m) |
| Displacement | 8300ML |
| Compression ratio: | 18:01 |
| Driver's Cab | |
| Dong FengD310-S1 (single sleeper, standard type) | |
| Transmission: | |
| Type | RT-11509C forward 9, reverse 1 |
| Ratio | 1st: 12.42; 2nd:8.62; 3rd:6.08; 4th:4.53; 5th:3.36; 6th: 2.47; 7th:1.81; 8th: 1.35; 9th: 1 Reverse: 12.99 |
| Steering: | |
| ZF steering | |
| Ratio | |
| Front axle | |
| Dong Feng- Hande, | |
| Rear axle | |
| Dong Feng-Hande reinforced , hub reducting axle | |
| Ratio | 5.92 |
| Clutch | |
| Φ430mm, diaphragm spring clutch | |
| Brakes | |
| Service brake:dual circuit compressed air brake | |
| Parking brake:spring energy operating on rear wheels | |
| Auxiliary brake:engine exhaust brake | |
| Wheels rim& Tyres: | |
| Rims | 8.50R20 |
| Tyres | 12.00R20 |
| Electric System | |
| Operating voltage | 24V |
| Alternator | 1500W |
| Batteries | 24 V/165Ah |
| Fuel tank: | |
| Capacity | 350L |
