Description of Wheel Asphalt Paver
1. Strong power, compact structure and easy operation;
2. Adopt double hydraulically telescoped screed and auto leveling sensor device.
3. Good leveling, high density.
4. The vulnerable parts: use advanced wearable material to secure the performance.
Features of Wheel Asphalt Paver
1. Equipped with DEUTZ technical engine for a powerful, trusty function.
2. Independent operation for L/R conveyor and distributor, easy to operate. Distributor is stretched by mechanical to make sure the spreading, and its blade is made of knock-down antifriction material and is convenient to replace.
3. All the control elements are centralized on operation platform, easy to operate.
4. Automatic leveling device satisfies the grade criterion of freeway.
5. Iron plate can be stretched to change the width of paving layer conveniently, reducing the time of putting iron plate.
6. Lubricated automatically by lubrication centralized device

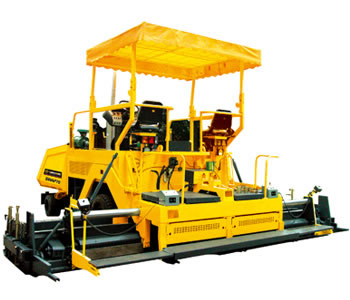

Application of SWAP60 Wheel Asphalt Paver
Wheel asphalt paver, a kind of road construction machinery, is suitable for paving asphalt material, widely used for the construction of highway, urban road, plaza, and parking lots etc.
Main Specification of SWAP60 Wheel Asphalt Paver
Performance parameter | |
Basic paving width | 2800mm |
Maximum width of paving | 6000mm |
Maximum thickness of paving | 250mm |
Minimum thickness of paving | 10mm |
Traveling speed | 2.30~16.84km/h |
Paving speed | 3.07~9.16m/min |
Crown | 4% |
Maximum theoretic productivity | 300t/h |
Hopper capacity | 12t |
Overall size | |
Length | 6394mm(6064mm when transfer) |
Width | 3000mm(2733mm when transfer) |
Height | 3695mm(2888mm when transfer) |
Engine | |
Model | F6L913T |
Type | wind cooling with 6 cylinders |
Power | 86kW/2300r/min |
Diesel oil tank capacity | 200L |
Drive system | |
The machine is driven by mechanical and hydraulic, flywheel is connected to transfer case, the front is connected to double pumps, supplying power for mechanism below: 1. Track traveling devices 2. Conveyor device and distributor device 3. Tamper 4. Lifting and falling screed, folding hopper and action of cylinders |
|
Traveling device | |
It is made up of transfer case, gear box with two grades, traveling clutch and chain. Driven chain gear travels with Wheels. | |
Load mode | |
Six wheels bear the weight of the whole machine, front wheels are two solid wheels, rear wheels are four pneumatic tires | |
Steering | |
The traveling clutch is controlled by hydraulic cylinder, and it can rotate itself with the brake. | |
Hopper | |
The capacity is 12tons and controlled by hydraulic cylinder to be cleared. | |
Roller | |
It is used to push the back wheels of the loading truck with material. | |
Conveyor | |
It is independently driven, clutch for conveyor is controlled by hydraulic cylinder, power is transferred by chain-wheel to drive scraper. | |
Electric system | |
It has 2 batteries, system voltage is 24V. | |
Cab | |
It is consisted of steel tube and cloth | |
Automatic level device | |
It has two piece of longitudinal and one piece of transversal equipment, used for automatic adjustment of slope and grade. | |
Working device | |
Hydraulic & Mechanical extended screed | |
Basic width of screed | 2800mm |
Hydraulic Extension of screed | 1200mm each side |
Mechanical Extension of screed | 1000mm each side |
Arch of max paving of Screed | 4% |
Vibrating frequency | 0~50Hz |
